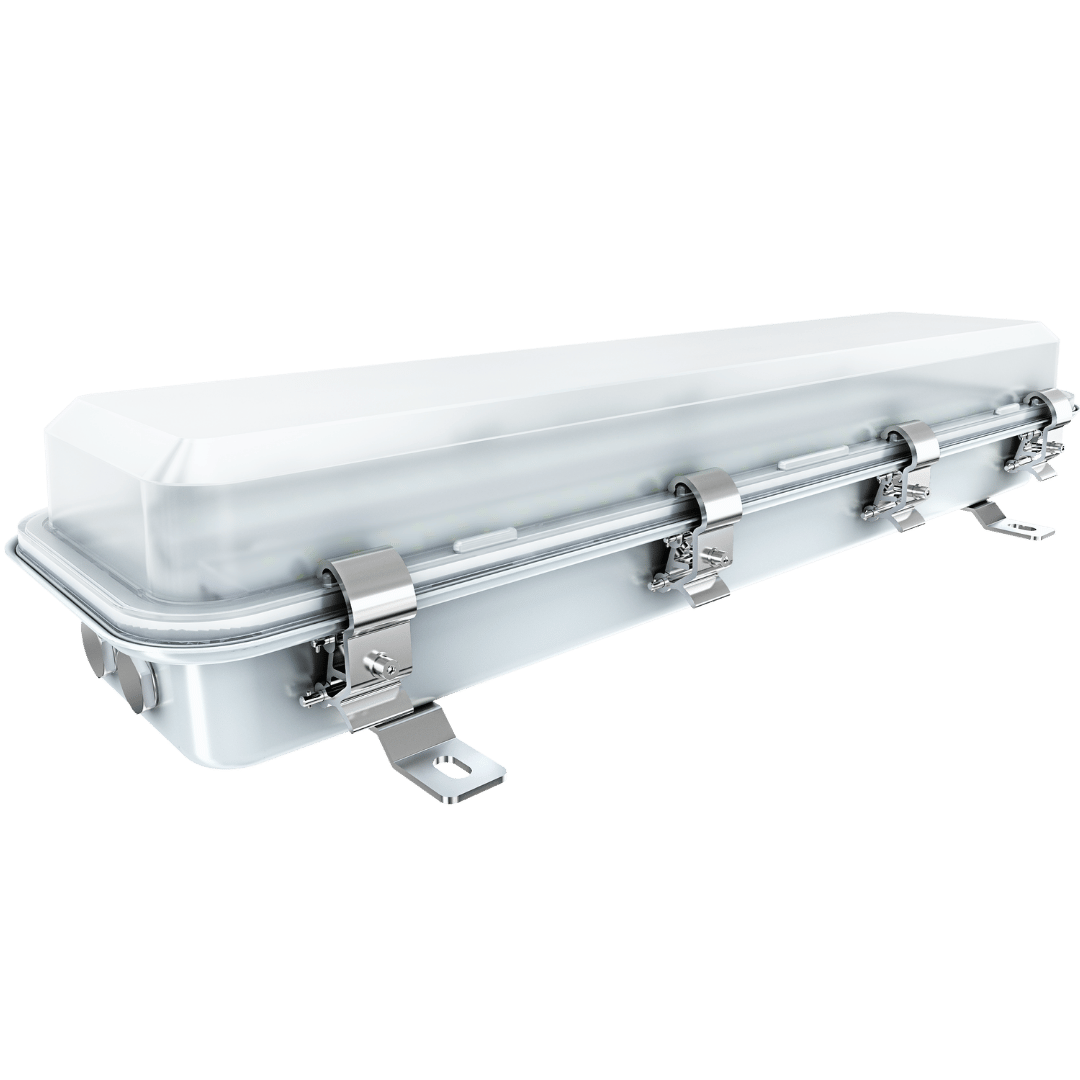

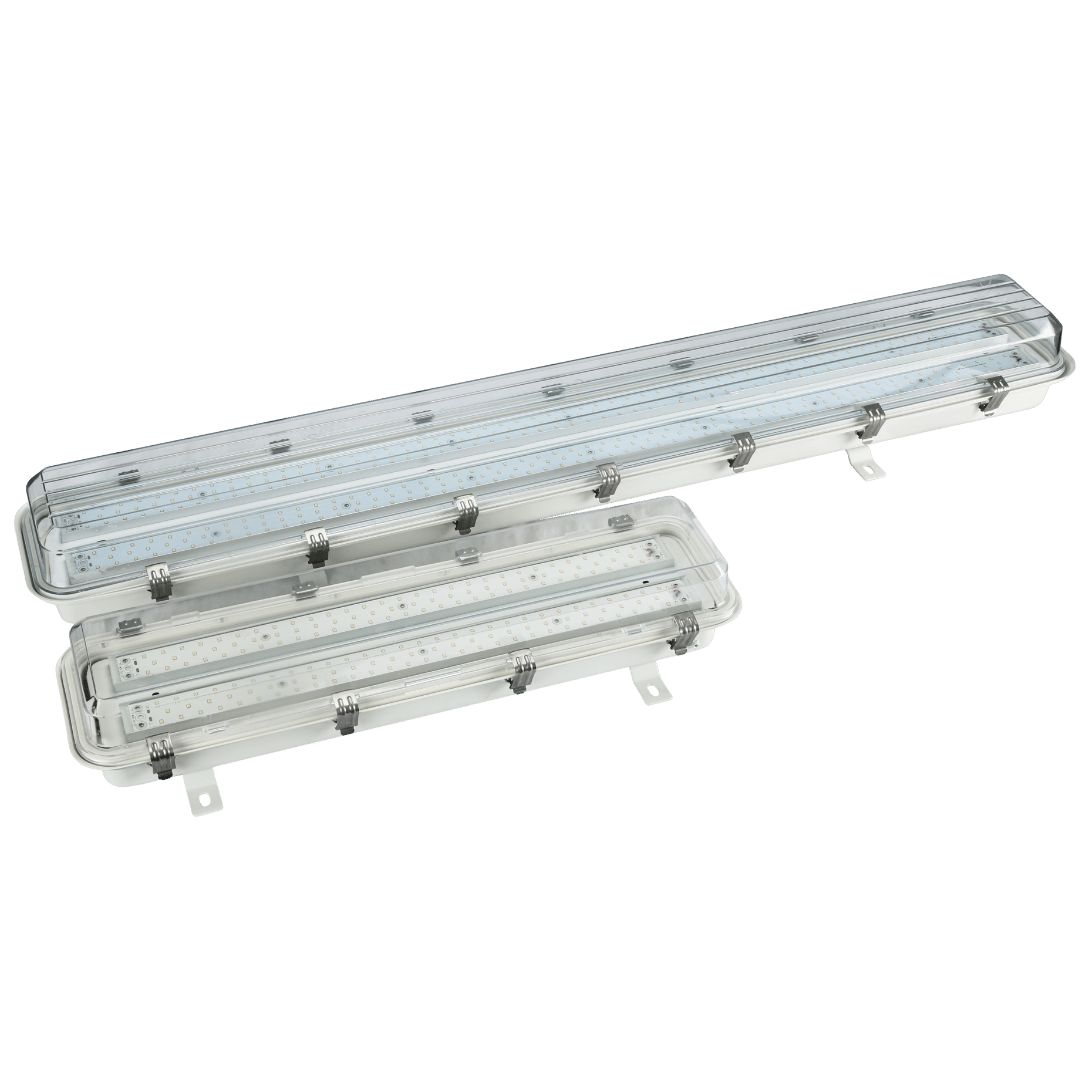

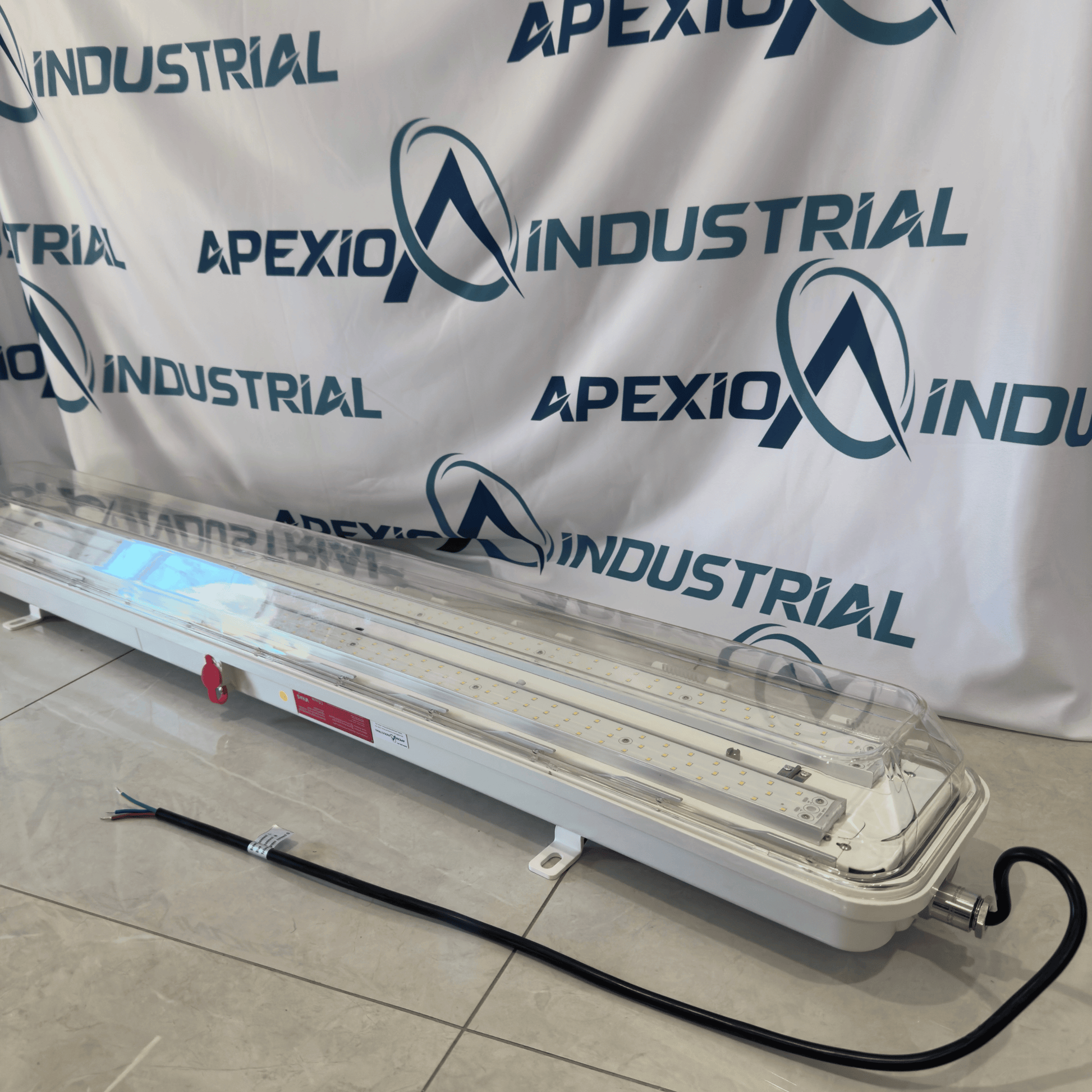

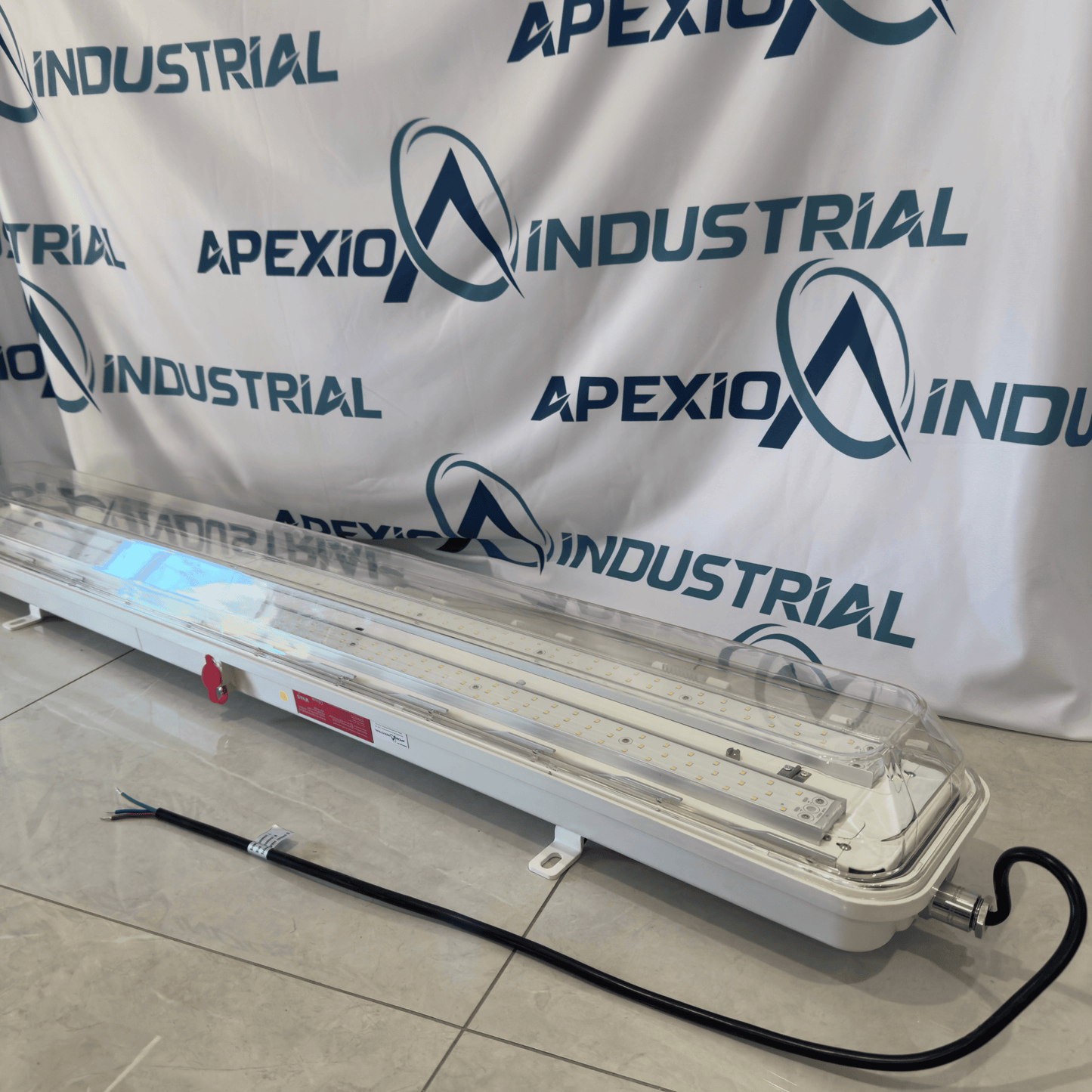

LED R-Series Batten Linear Light | ATEX IECEx | Hazardous Area Zone 1/2 Explosion-proof

LED R-Series Batten Linear Light | ATEX IECEx | Hazardous Area Zone 1/2 Explosion-proof

$1,250.45 AUD
$1,250.45 AUD
Sale Pre order now
and Shipping is calculated at checkout.

14 in Stock Ready to Ship

Apexio Industrial's Protection Level Ex db eb mb / Ex tb Flameproof Dustproof, LED R-Series Hazardous Area High Bay Batten Linear Lights are widely used in places of hazardous atmospheres, such as Marine, Petrochemical, Chemical, Petroleum, Oil and Gas, Spray Booths, Brewery industries. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.

FEATURES

  • EPL (Equipment Protection Level) Flameproof db, Increased Safety eb, Encapsulation mb and Dust Protection by Enclosure tb
  • High quality SMT LEDs and Meanwell Drivers
  • 5000k Colour Temperature
  • 120° Beam Angle
  • Low and High Temperature Atmospheres -40°C - +50°C
  • Marine rated powder coated finish treatment for heavy duty conditions
  • IECEx and ATEX certified for Hazardous Areas
  • Multiple mounting options and accessories
  • Dimensions 1302x220x149mm
  • Dimmable 0-10V

All standard lights come stock standard with, Plane Glass, Pendant and Surface Mounting Installation, (Top Hole NPT 3/4 with end plug without cable, x2 M20 side entry holes.

SKU Model: R-Series

View full details

Technical Datasheet

Click here to see the datasheet

Shipping

Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.


We aim to process and get your delivery with you as quick as possible.

Please contact us to retrieve the estimate lead times for your order.

Guarantee

We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.

Warranty

• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.

Please see our returns policy for more information.

  • Hazardous Area Certified

    Certification

    • IECEx CSAE 21.0013X
    • CSANe 21ATEX1172X

    Zone Location

    IECEx

    • Ex db eb mb IIC T6/T5 Gb
    • Ex tb IIIC T80°C/T95°C Db IP66

    ATEX

    • Ex II 2GD - Ex db eb mb IIC T6/T5 Gb
    • Ex II 2GD - Ex tb IIIC T80°C/T95°C Db IP66

  • Electrical Safety Certified

    • IP66
    • IK08/IK10
    • 1200 hours Salt spray
    • Ambient Rating: -40°C to 50°C
    • Zones 1&2, Zone 21&22

  • Construction

    • UV Fiberglass Polycarbonate Lens
    • Suitable for dead end, through feed* or single-ended “T” wiring

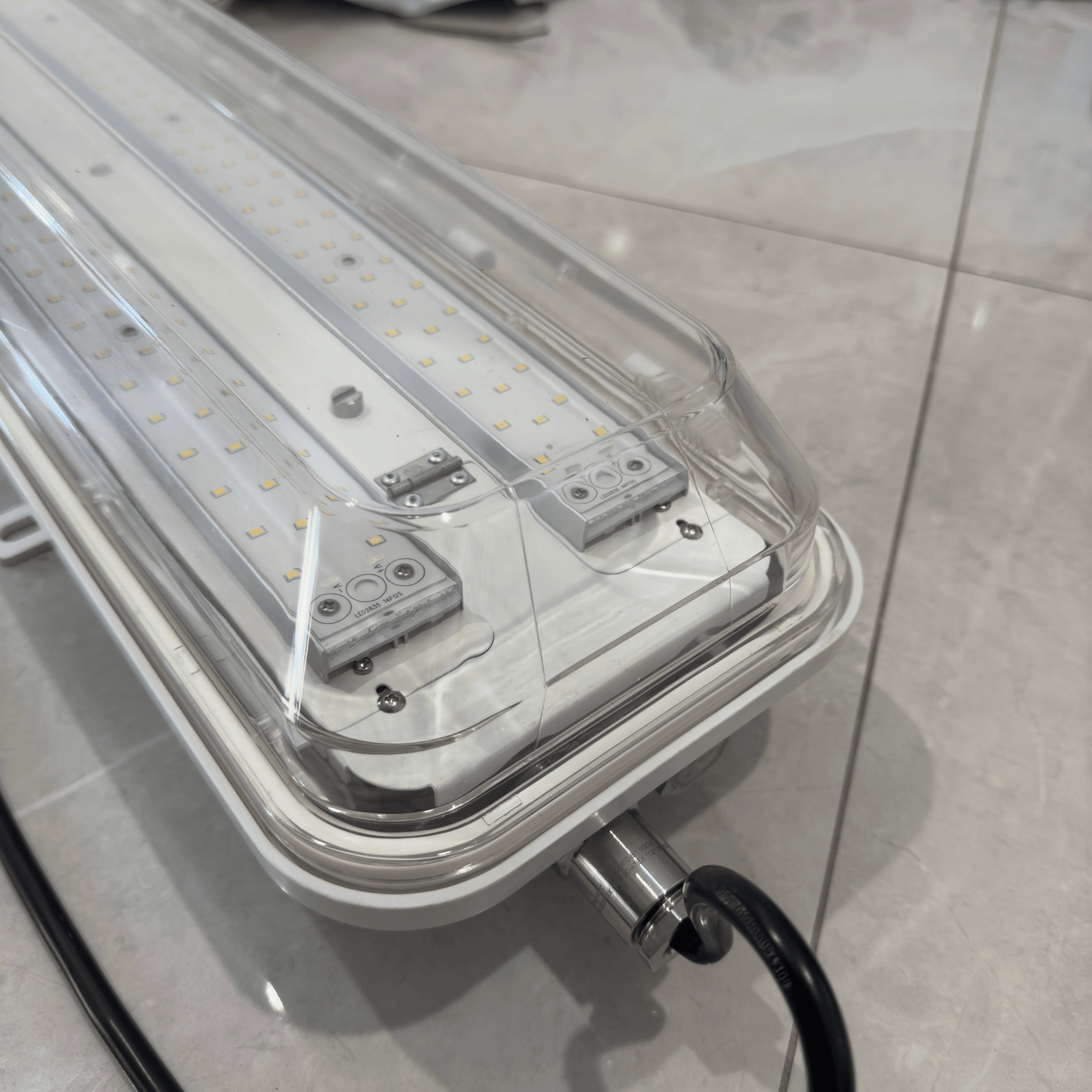

    • Replaceable LED light strip

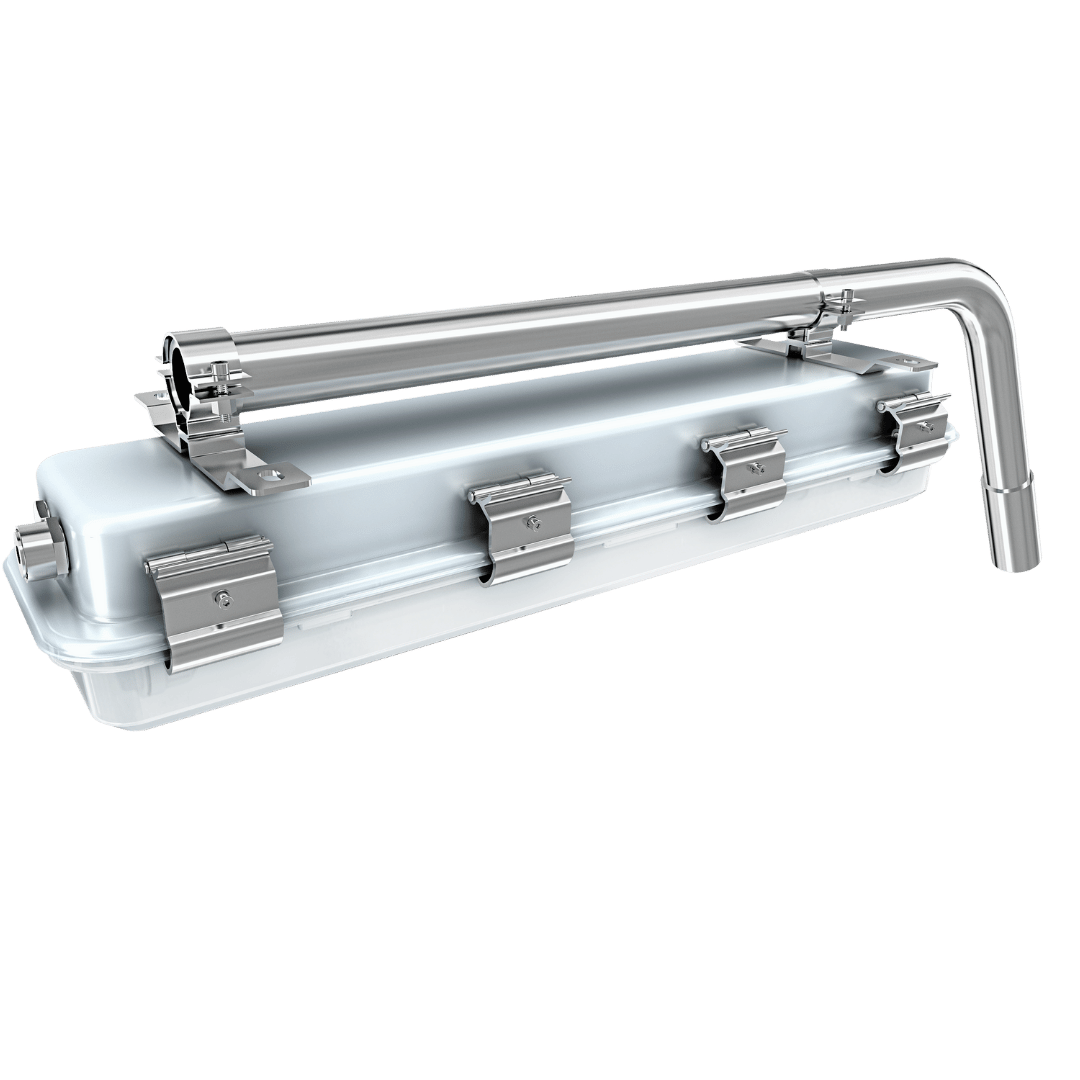

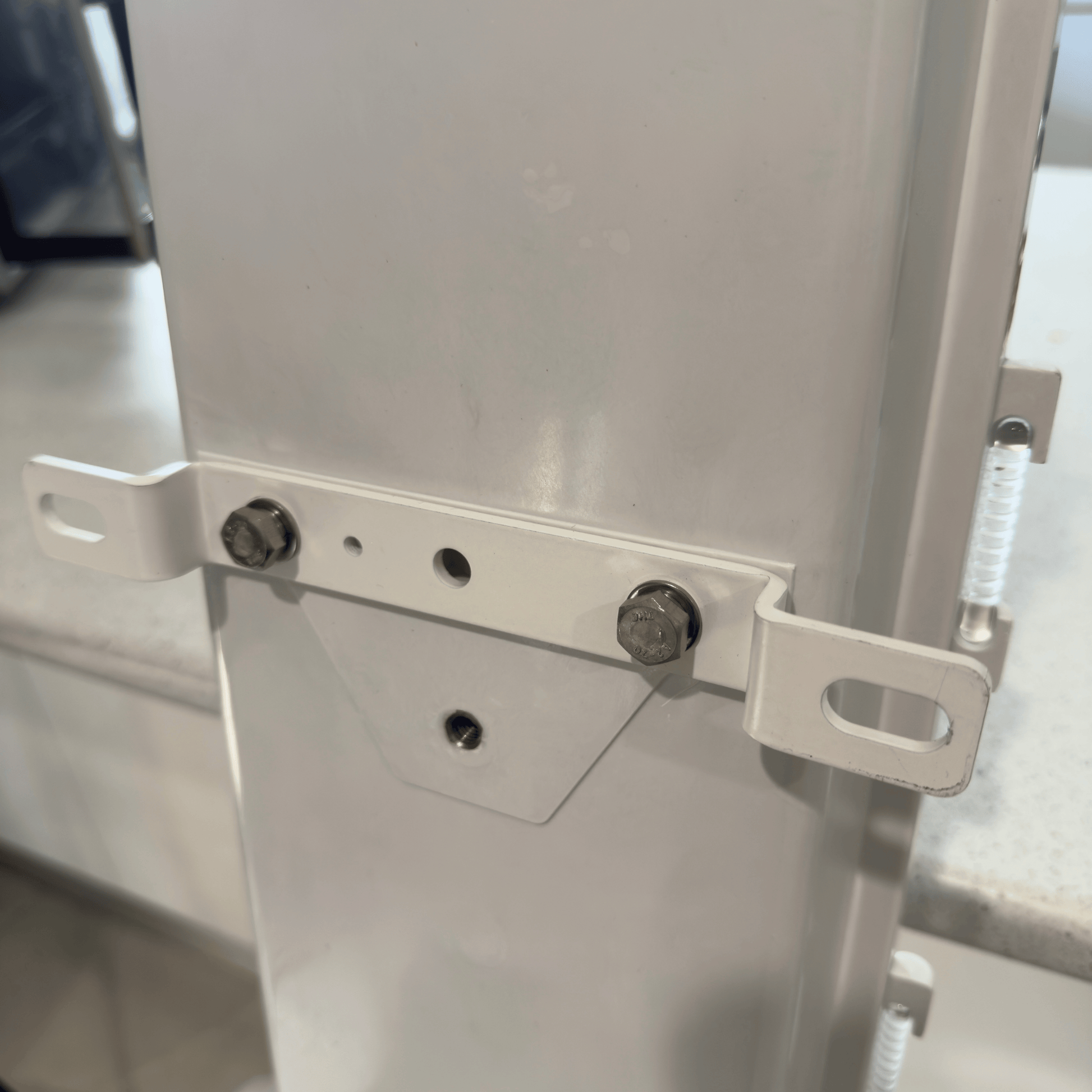

    • Mounting for Ceiling, Walls, Hooks, Poles, Arms, Stanchions
    • Emergency battery back-up (90 minutes + push to test)

  • Pre & Post After Sales Support

    After Sales Support

    We offer after sales support on all our products including

    • Installation
    • Configuration
    • Maintenance
    • Repair
    • Calibration

  • Calibration & Repair

    Our accredited laboratory is tailored to conduct traceable standard calibrations and repairs on all our equipment.

    Calibration Services

Multicolumn

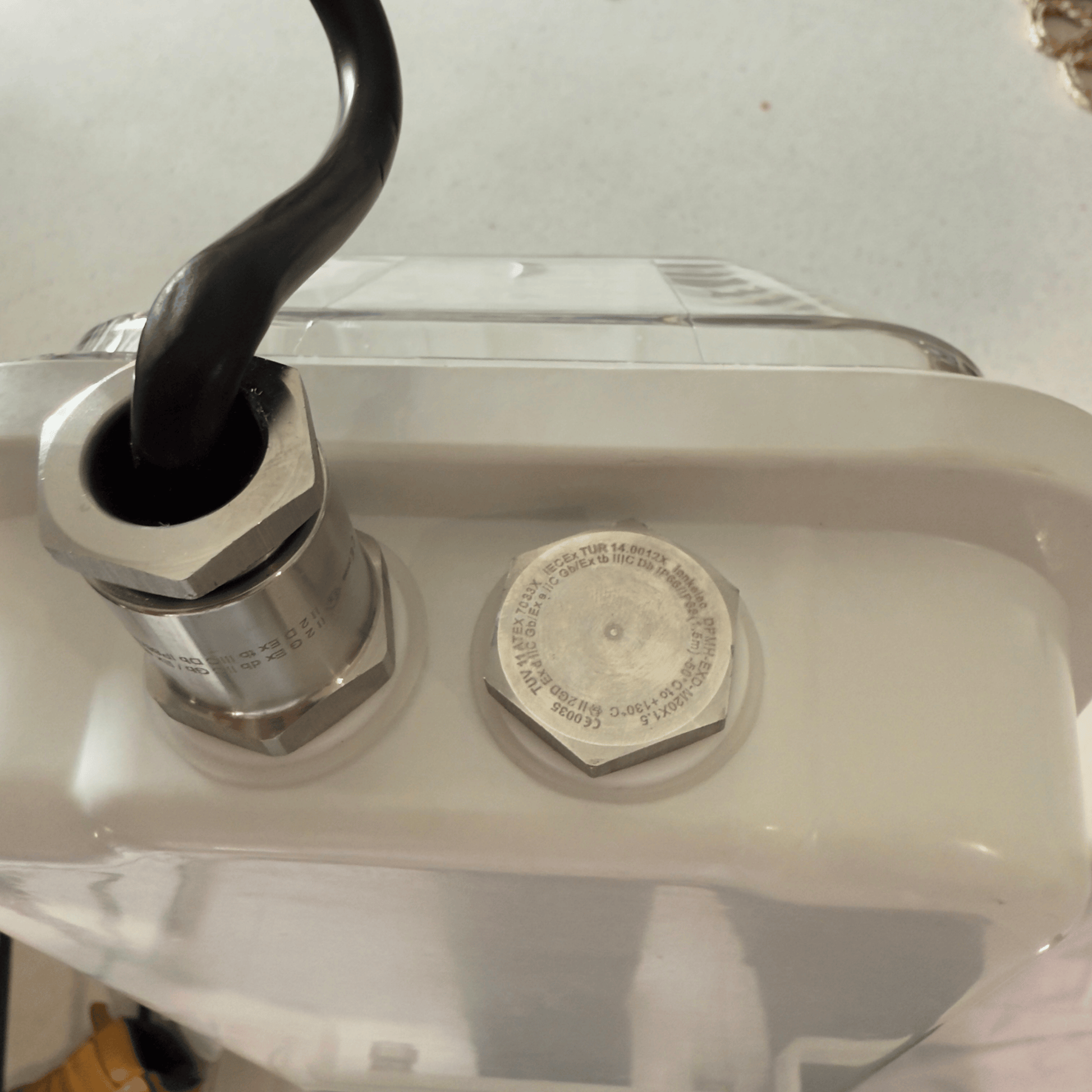

  • Built in Ex Gland

  • Configurable Wiring

  • Industrial Construction
