Ex LED Flood Light - IECEx ATEX Hazardous Area Zone 1,2

Ex LED Flood Light - IECEx ATEX Hazardous Area Zone 1,2

$669.95 AUD
$669.95 AUD
Sale Pre order now
GST and Shipping is calculated at checkout.

4 in Stock Ready to Ship

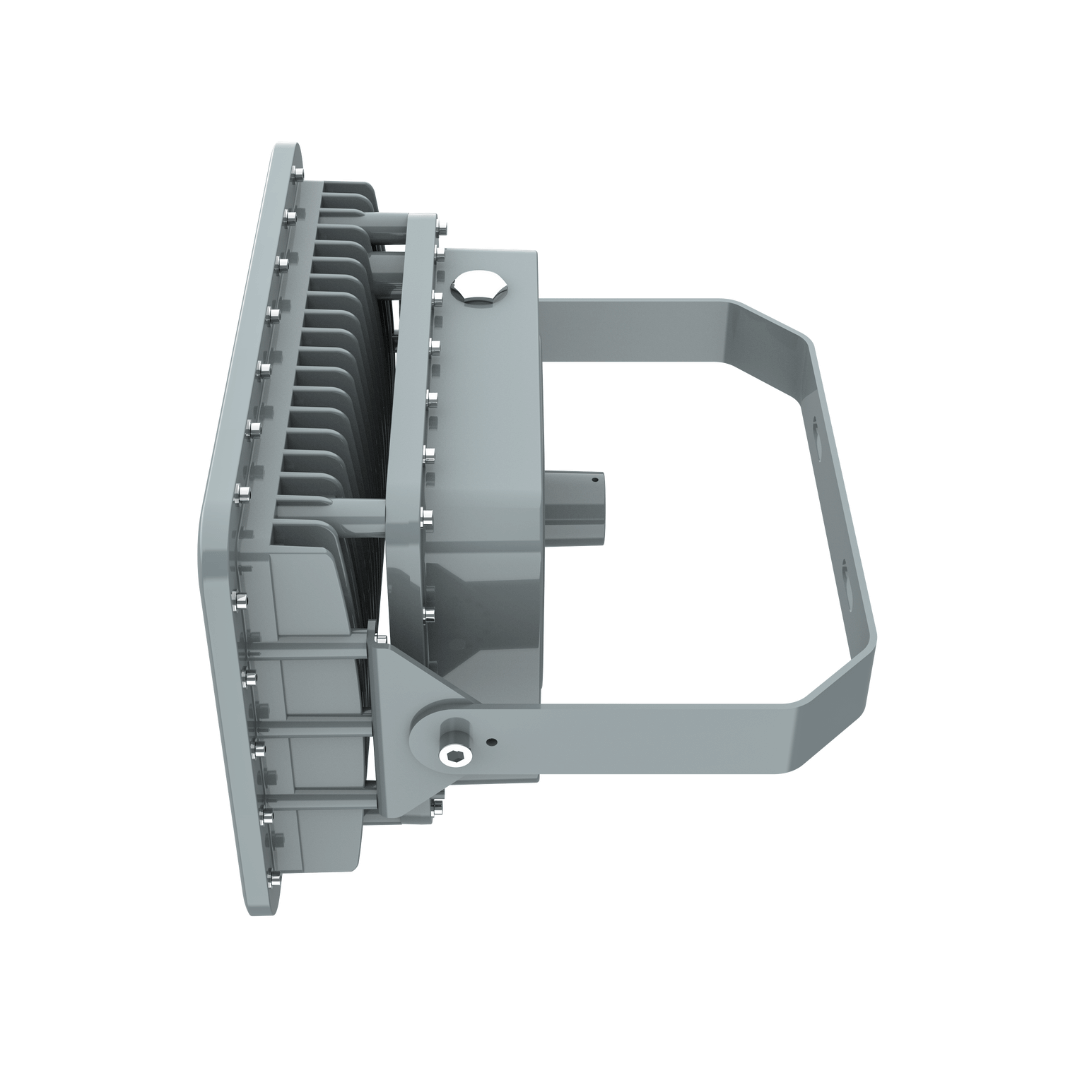

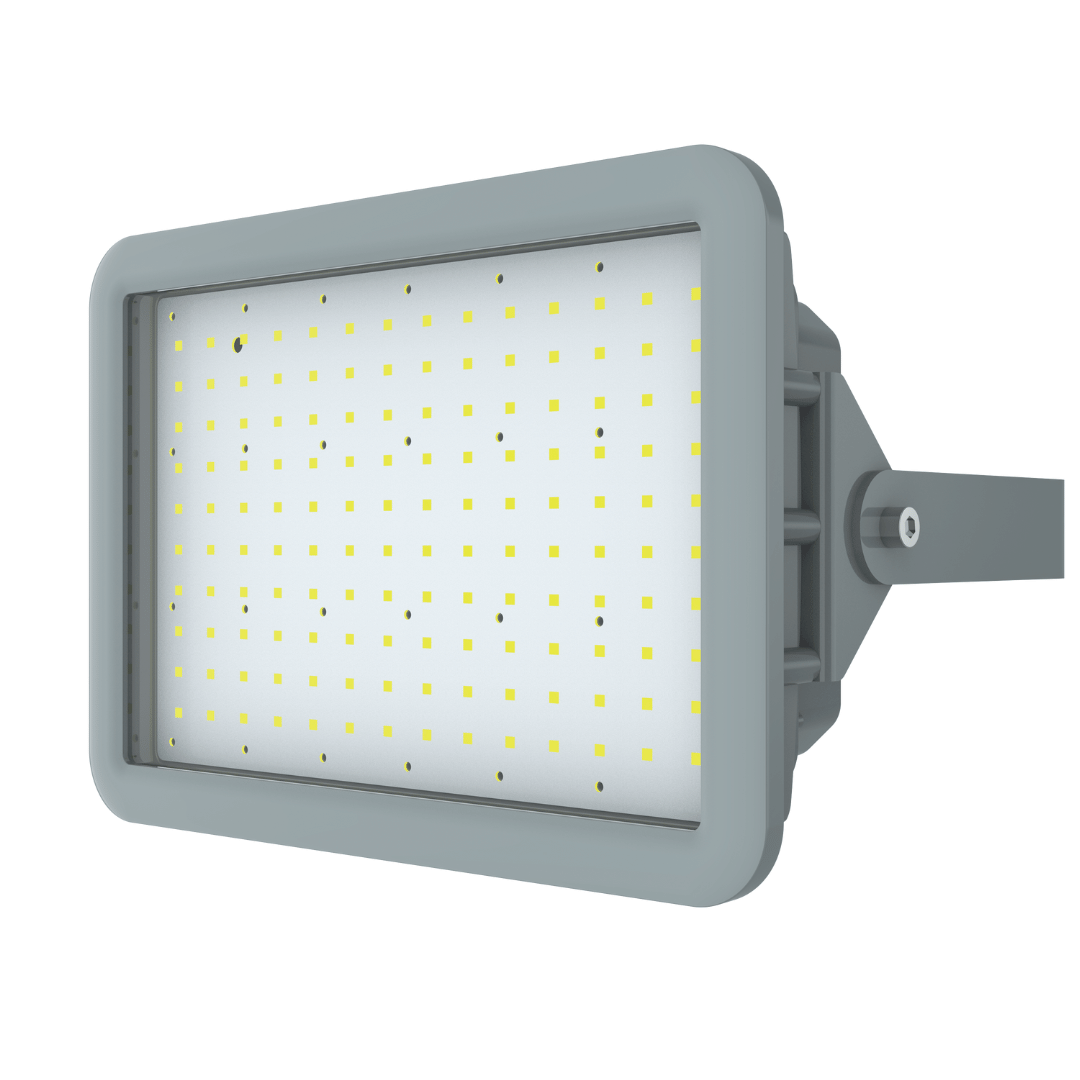

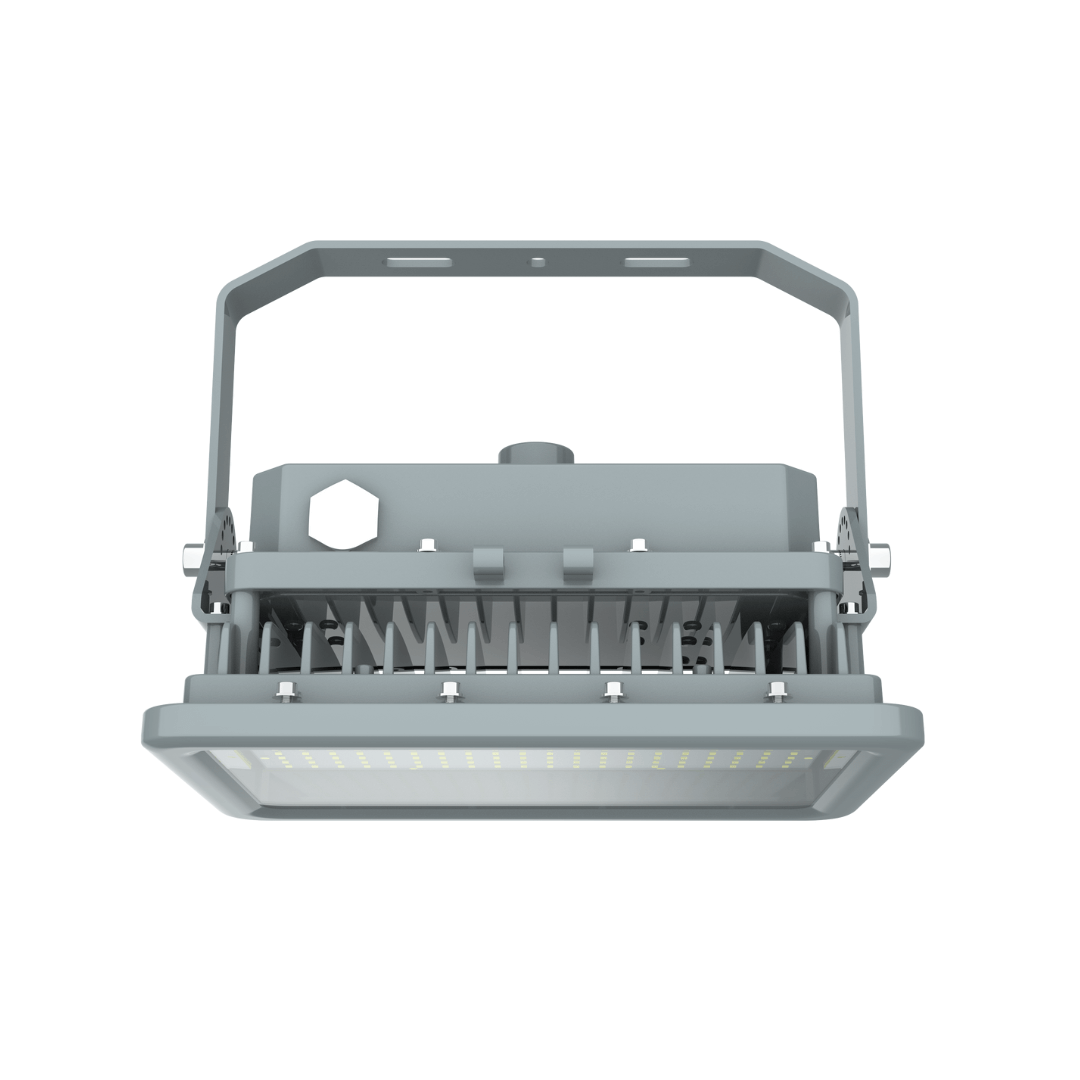

The A-Series Hazardous Area LED Flood Lights, sets the stand in Ex rated explosion-proof lighting. Engineered to endure and perform in the relentless challenges of the industrial environments with moisture, dirt, dust, corrosion, and vibration.

Harnessing equipment protection levels of Increased safety "ec", dust ignition protection by enclosure "tb". These LED lights are perfectly suited for the most challenging harsh atmospheric conditions found in industries such as oil and gas, marine, petrochemical, chemical, petroleum, spray booths, and breweries. Covered by the IECEx and ATEX certification, brings a compliant solution to hazardous areas.

All standard A-series lights come stock standard with Non-dimming, Plane Glass, Bracket Installation, Top Entry M25. (3/4" NPT, M25 Optional), Side Entry Optional (3/4" NPT, M20, M25, 1/2"NPT), with blanking end plug without cable.

SKU Model: A-Series

View full details

Technical Datasheet

Click here to see the datasheet

Shipping

Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.


We aim to process and get your delivery with you as quick as possible.

Please contact us to retrieve the estimate lead times for your order.

Guarantee

We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.

Warranty

• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.

Please see our returns policy for more information.

  • Hazardous Area Certified

    Certification

    • IECEx TPS 22.0028X
    • TPS 22 ATEX102136 0013 X Rev.2

    Zone Location

    • Ex eb mb IIC T6-T4 Gb
    • Ex tb IIIC T80°C-T100°C Db

  • Electrical Safety Certified

    • IP66
    • IK08/IK10
    • 5G Vibration
    • Zones 1&2, Zone 21&22

  • Construction

    • Copper-Free Aluminium Case
    • Tempered Glass & PC Lens
    • Stainless Steel Hardware
    • Mounting holes for Ceiling, Walls, Hooks, Poles, Arms, Stanchions.
    • Cable Entry Side: 3/4 NPT, M20, M25, 1/2 NTP
    • Cable Entry Top: 3/4 NTP, M25

Case Studies

  • lighting design image 3

    Propane Transportation Facility

    Propane transportation facility lighting design made by our lighting engineers. This install we used *3 40W Ex rated Zone 1 LED Jelly Jar lights, with mounted height of 4m. The propane transport area, measuring 2.4x12m achieved an average illumination of 12.9 foot-candles (fc).

  • Chemical Plant

    Chemical plant lighting photometric design made by our lighting engineers. This install we used *4 150W Ex rated Zone 1 LED Jelly Jar lights, with mounted height of 4.5m. The sub level grading height was 3m, and achieved an average illumination of 70fc while the main level ceiling was 4.2m with an illumination average of 34.5 fc.

  • lighting design image 1

    Paint Booth

    Spray paint booth lighting photometric design made by our lighting engineers. This install we used *9 60W Ex rated Zone 1 LED Linear Lights, used on a 12x2.4m paint booth with 2.7m ceilings. The fixtures were mounted on the wall and provided a maximum of 290 foot candles with a uniformity of 1.22-3.96.

Lighting Design

  • lighting_design_3

    Illumination Mapping

    2D and 3D mapping helps better placement of lighting, as a result of the colour view from the pseudo view of coverage. Resulting in cost effective solution to knowing exactly where and how many lights are needed.

  • lighting design 2

    3D Site Modelling

    A professional addition to provide a detailed layout of the near real life site that includes all the construction variable on site. Visually seeing how object are effecting blind spots.

  • lighting design 1

    2D Light Positioning

    Using your site drawing plans, we can plot the lights and draw a coverage area via the spread of lux levels, from the lights.

Pre & Post Sales Support

We offer after sales support on a wide range of our products including:

  • Design
  • Selection
  • Engineered Fabrication
  • Installation
  • Configuration
  • Maintenance
  • Repair
  • Calibration

Speak to our Technical Sales Team Today.

Explosion proof lighting is critical in areas where the presence of flammable gases and vapours or ignitable dust and fibres could possibly create a hazardous atmosphere. Designed to prevent and control the risk of ignition.
