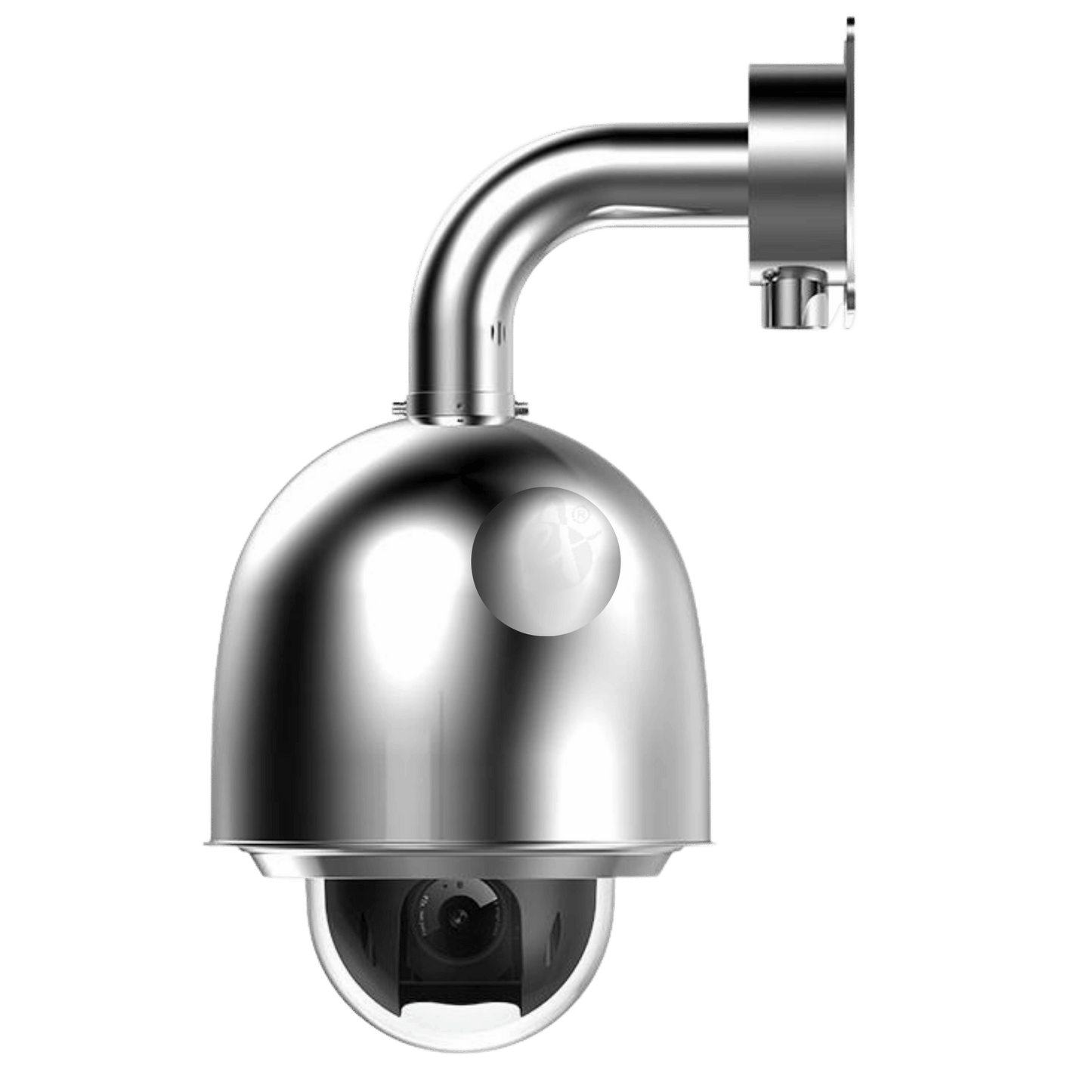

Ex PTZ Dome Network Camera - Hazardous Area IECEx ATEX Zone 1,2

Ex PTZ Dome Network Camera - Hazardous Area IECEx ATEX Zone 1,2

Regular price $6,455.95 AUD
Regular price Sale price $6,455.95 AUD
Sale Pre order now
GST and Shipping is calculated at checkout.

Explosion-Proof PTZ Dome Network Camera – Certified for Hazardous Areas

Ensure high-performance surveillance in hazardous gas (Zone 1, Zone 2) and dust (Zone 21, Zone 22) environments with our ATEX & IECEx-certified PTZ dome network camera. Engineered for extreme conditions, it features a rugged stainless steel 304/316L housing with optional electropolished or corrosion-resistant coating for ultimate durability.

🔹 Full HD 1080p Imaging1/2.8” STARVIS™ CMOS sensor with up to 60fps
🔹 Powerful Optical Zoom & PTZ Precision – Track objects in motion with auto-tracking
🔹 Superior Low-Light PerformanceStarlight technology & True WDR for dark or high-glare areas
🔹 False Alarm Reduction – AI-powered analytics filter out irrelevant movements
🔹 Smart H.265+ Compression – Save up to 70% on bandwidth and storage
🔹 Versatile Mounting & ConnectivityWall/ceiling mount, PoE++ support, and optional fibre optic output

With IP66 & IP68-rated protection (submersible up to 2m for 2 hours), this explosion-proof dome camera is ideal for oil & gas, chemical plants, and hazardous industrial sites.

View full details

Collapsible content

Technical Datasheet

Shipping

Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.


We aim to process and get your delivery with you as quick as possible.

Please contact us to retrieve the estimate lead times for your order.

Guarantee

We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.

Warranty

• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.

Please see our returns policy for more information.

  • Hazardous Area Certified

    Certification

    • IECEx DNV 21.0048X

    Equipment Protection Level

    • Ex db IIC T6 Gb (without optical fibre)
    • Ex db op pr IIC T6 Gb (with optical fibre)
    • Ex tb IIIC T80°C Db (without optical fibre)
    • Ex tb op pr IIIC T80°C Db (with optical fibre)
  • Main Features

    • Stainless steel 304 or 316L
    • Optional electropolished or corrosion resistant paint finish
    • Enclosure Protection: IP66, IP68(2m/2h)

    • AC100-240V or AC24V or DC24V or PoE++ Voltage Input
    • Optical zoom and accurate pan/tilt zoom
    • 1/2.8” 2Megapixel STARVIS™ CMOS
    • Max.50/60 fps@1080P
    • Start-light technology fits for dark, low-light applications
    • True WDR for applications with direct sunlight or glare.

    • Automatically filters out false alarms
    • Automatically track an object in motion

    • Smart H.265+ technology reduces bit rate and storage requirements by up to 70%
    • Optical fibre output version available

  • Camera Specifications

    • Camera
      Image Sensor 1/2.8" STARVIS™ CMOS
    • Pixel 2MP
    • Max. Resolution 1920 (H) x 1080 (V)
    • ROM 4 GB / RAM 1 GB
    • Electronic Shutter Speed 1/1 s–1/30000 s
    • Min. Illumination
      Color: 0.005 Lux@F1.35
      B/W: 0.0005 Lux@F1.35
      Lens
    • Focal Length 4.9 mm–156 mm
    • Max. Aperture F1.35–F4.4
    • Field of View H: 62.8°–2.2°; V: 36.7°–1.3°; D: 69.2°–2.6° Optical Zoom 32x
    • Focus Control Auto/Semi-Auto/Manual
    • Close Focus Distance 1 m–1.5 m (3.28 ft–4.92 ft)
