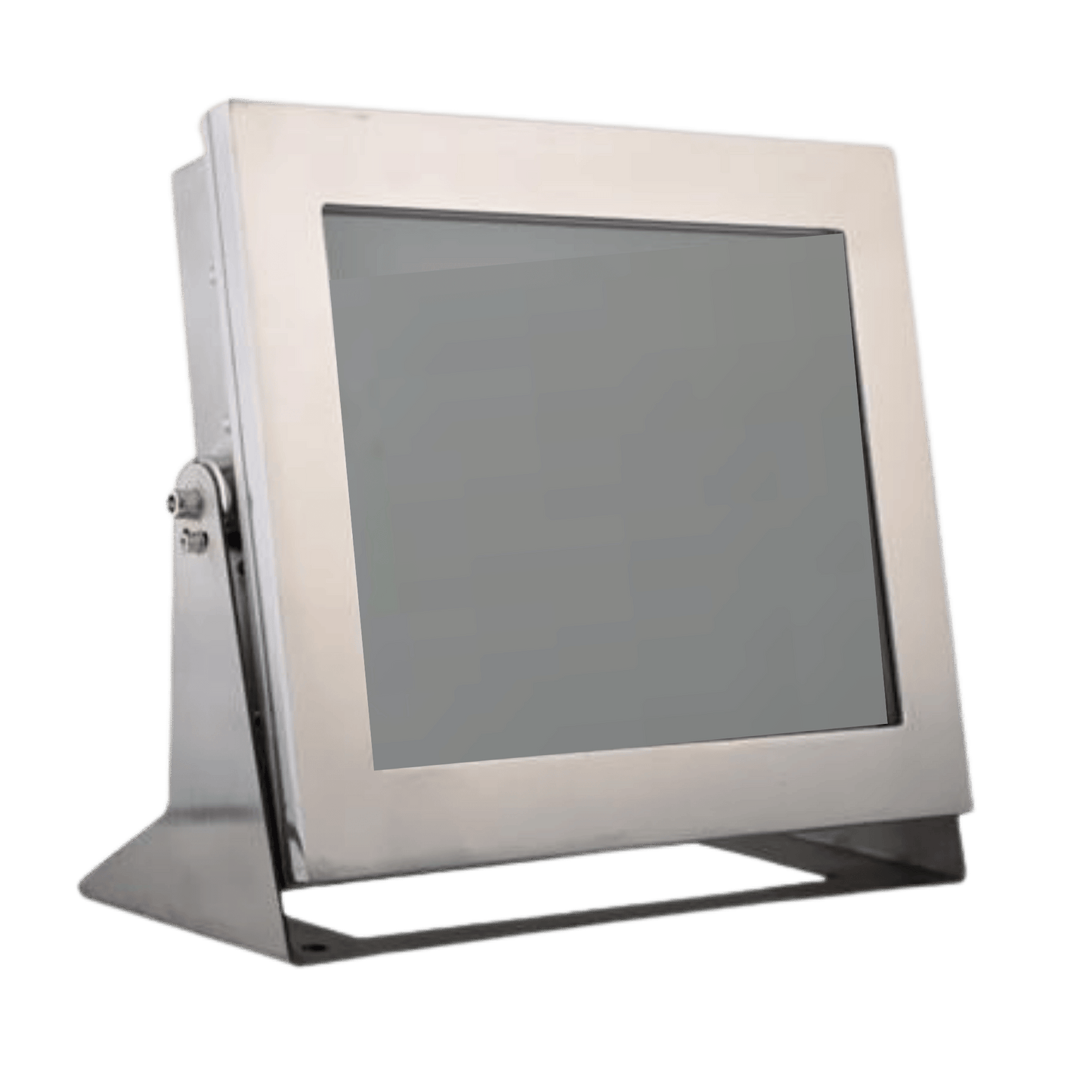

The CZ400 Series is an IECEx and ATEX certified explosion-proof monitor, designed for Gas Zones 1 and 2 and Dust Zones 21 and 22. It supports AHD, CVBS, and TVI camera formats, making it ideal for industrial TV supervision in hazardous environments.
This versatile monitor offers BNC and standard video interfaces, supporting PAL and NTSC video standards. The durable steel flat glass display ensures superior visual quality, while flexible installation options (table, platform, or bracket mount) provide convenience and reliability.
Optimized for safety and performance, the CZ400 Series is a must-have for explosion-proof monitoring in critical industrial applications.
Collapsible content
Technical Datasheet
Shipping
Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.
We aim to process and get your delivery with you as quick as possible.
Please contact us to retrieve the estimate lead times for your order.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
-
Hazardous Area Certified
IECEx
Ex db IIB T6 Gb, Ex tb IIIC T80°C Db
SKU Variant F:
Ex db op pr IIB T6 Gb, Ex tb op pr IIIC T80°C
Db
ATEX
ExⅡ2G Ex db ⅡC T6 Gb, Ex Ⅱ2D Ex tb ⅢC T80 ºC Db -
Features
- Video system PAL/ NTSC
- Panel life 30,000 hours
- View Degree (H/V) 170°/160°
- Connector Port HDMI or VGA,or BNC, S-VHS, RGB, CVBS
- Cable integrated cable *2m long
- Max resolution 1280*1024
- Screen size 17inch LED
-
Main Construction & Power
- IP IP68
- Cable thread hole M25*1.5 or M27*1.25
- Voltage 100~240 V a.c. 50/60 Hz or 24 V a.c. 50/60 Hz
or 24 V d.c - Power 50W
- Surge Protect Optional, TVS6000V
- Ambient temperature -25 to +60℃ / -45 to +80℃
