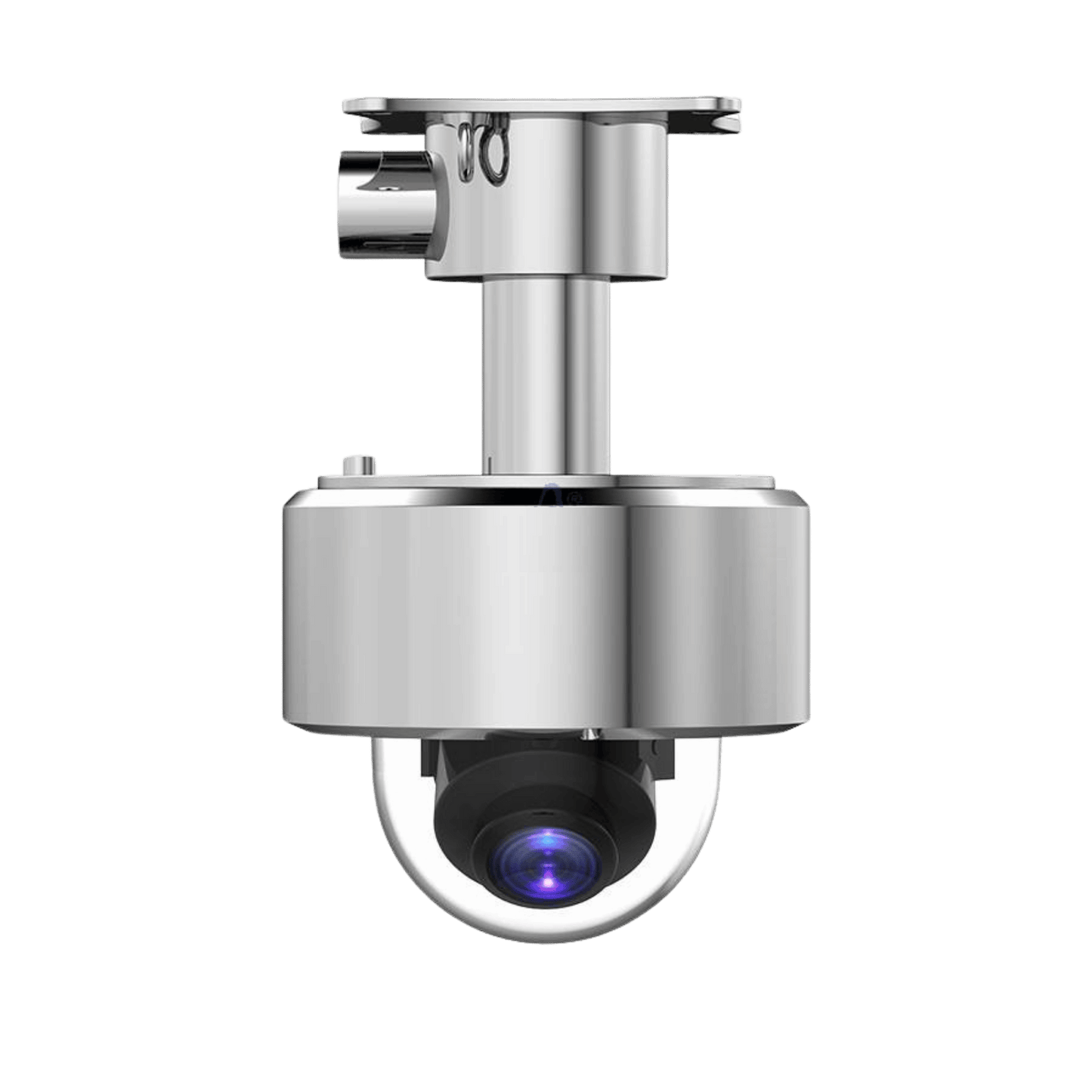

Ex IR Fixed-Focal Mini Dome Network Camera - Hazardous Area IECEx ATEX Zone 1,2

Ex IR Fixed-Focal Mini Dome Network Camera - Hazardous Area IECEx ATEX Zone 1,2

Regular price $1,879.95 AUD
Regular price Sale price $1,879.95 AUD
Sale Pre order now
GST and Shipping is calculated at checkout.

Explosion-Proof IR Mini Dome Network Camera – Certified for Hazardous Areas

Designed for hazardous gas (Zone 1, Zone 2) and dust (Zone 21, Zone 22) environments, our IECEx and ATEX-certified IR Fixed-Focal Mini Dome Camera delivers high-definition 4MP surveillance in extreme conditions. Its stainless steel 304/316L housing with IP66 & IP68 protection ensures maximum durability against dust, water, and corrosion.

🔹 Ultra-Clear 4MP Imaging1/3” CMOS sensor with True WDR & 3D NR for superior clarity
🔹 50m Infrared Night Vision – Built-in IR LED for round-the-clock monitoring
🔹 Smart Analytics & AI DetectionIntrusion, tripwire, motion detection, privacy masking
🔹 Efficient Video CompressionH.265+ codec reduces bandwidth & storage usage
🔹 Rugged & VersatilePoE/DC12V power, Micro SD support (256GB), and alarm/audio options
🔹 360° Pan & 90° Tilt with Auto Flip – Full-area coverage with auto-tracking & face detection

With its compact design, advanced AI features, and explosion-proof build, this fixed-focal mini network camera is ideal for oil & gas, chemical plants, and high-risk industrial zones.

View full details

Collapsible content

Technical Datasheet

Shipping

Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.


We aim to process and get your delivery with you as quick as possible.

Please contact us to retrieve the estimate lead times for your order.

Guarantee

We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.

Warranty

• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.

Please see our returns policy for more information.

  • Hazardous Area Certified

    Certification

    • IECEx DNV 21.0047X

    Equipment Protection Level

    • Ex db IIC T6 Gb (without optical fibre)
    • Ex db op pr IIC T6 Gb (with optical fibre)
    • Ex tb IIIC T80°C Db (without optical fibre)
    • Ex tb op pr IIIC T80°C Db (with optical fibre)
  • Main Features

    • Application: gas zone 1, zone 2; dust zone 21, 22. • Exd II CT6 Gb/ Ex tD A21 IP68 T80℃
    • Stainless steel 304 or 316L
    • Optional electropolished or corrosion resistant paint finish
    • Enclosure Protection: IP66, IP68 (2m, 2h) • Power input: DC12V/1.5A or POE power supply
    • 1/3” 4Megapixel CMOS
    • Powerful 4x optical zoom
    • Max. 25/30fps@4M/3M
    • ROI, H.264+/H.265+
    • WDR, Day/Night(ICR), Ultra DNR
    • Intelligent detection: Intrusion, tripwire

  • Camera Specifications

    • Image Sensor - 1/3” CMOS
    • Effective Pixels - 2592(H) x 1520(V), 4 Megapixels
    • RAM/ROM - 256M/128M
    • Electronic Shutter Speed - 1/1s~1/30,000s
    • Minimum Illumination Colour: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
    • S/N Ratio - More than 50dB
    • Focal Length 2.7mm~11mm
    • Max. Aperture - F1.6 ~ F2.8
      Angle of View H: 112.5° ~ 30°
    • Optical Zoom 4x
    • Close Focus Distance 100mm~ 1000mm
