Hazardous Area Certified
Certification
- IECEx CSA 23.0034X
Equipment Protection Level
- Ex eb ib [ib Gb] mb IIC T6/T5 Gb
- Ex ib [ib Db] tb IIIC T80°C/T95°C Db
-
FEATURES
- SIP or H323 protocols (Compatible with all PBX'S).
- Power supply: Power over Ethernet (PoE).
- Fully configurable through any internet browser or the on-board display.
- Handset with noise cancelling microphone, for effective communication from noisy areas.
- No.of keys (TOTAL 15KEYS): 0-9,*, #, Redial, Mute, Last Number Redial
-
Construction
- Corrosion resistant aluminium alloy die casting housing, available in four colours, with NPT conduit entries and Type 3 / IP67 environmental ratings.
- Armoured SS cord stands up to rough treatment.
- Completely programmable weatherproof keypad designed to be used with gloves.
- Mounting: Wall/column/structural.
- Captive cover screws prevent loss during installation.
- Dimension: Approx. 246*339*126mm (H*W*D)
- Weight: 8Kg. (Approx).
Case Studies
-
Intrinsic Safety and Explosion Protection
Explosion-proof telephones and intercom systems are built with intrinsically safe designs, meaning they limit electrical and thermal energy to levels that are incapable of causing ignition in dangerous environments. This feature is essential in chemical processing plants where explosive atmospheres are common, ensuring that communication devices do not become a source of ignition. The systems adhere to global certifications like ATEX and IECEx, which validate their safety in explosive environments.
-
Reliable Communication in Harsh Environments
Chemical plants are typically noisy, and traditional communication devices may struggle to transmit clear audio. Explosion-proof telephones and loudspeaker intercom systems are equipped with advanced noise-cancellation technology, allowing workers to communicate effectively even in high-decibel areas such as near reactors or large machinery. This real-time communication is critical for coordinating daily operations, managing workflows, and addressing unexpected issues swiftly.
-
Enhancing Emergency Preparedness and Response
In the event of an emergency, such as a chemical leak or fire, having an effective communication system is vital foremergency response. Explosion-proof intercom systems are often integrated withone-touch emergency callfeatures, enabling immediate alerts and instructions to be broadcasted throughout the facility. This capability allows plant operators and safety personnel to respond quickly to incidents, potentially preventing accidents from escalating and reducing downtime caused by emergencies.

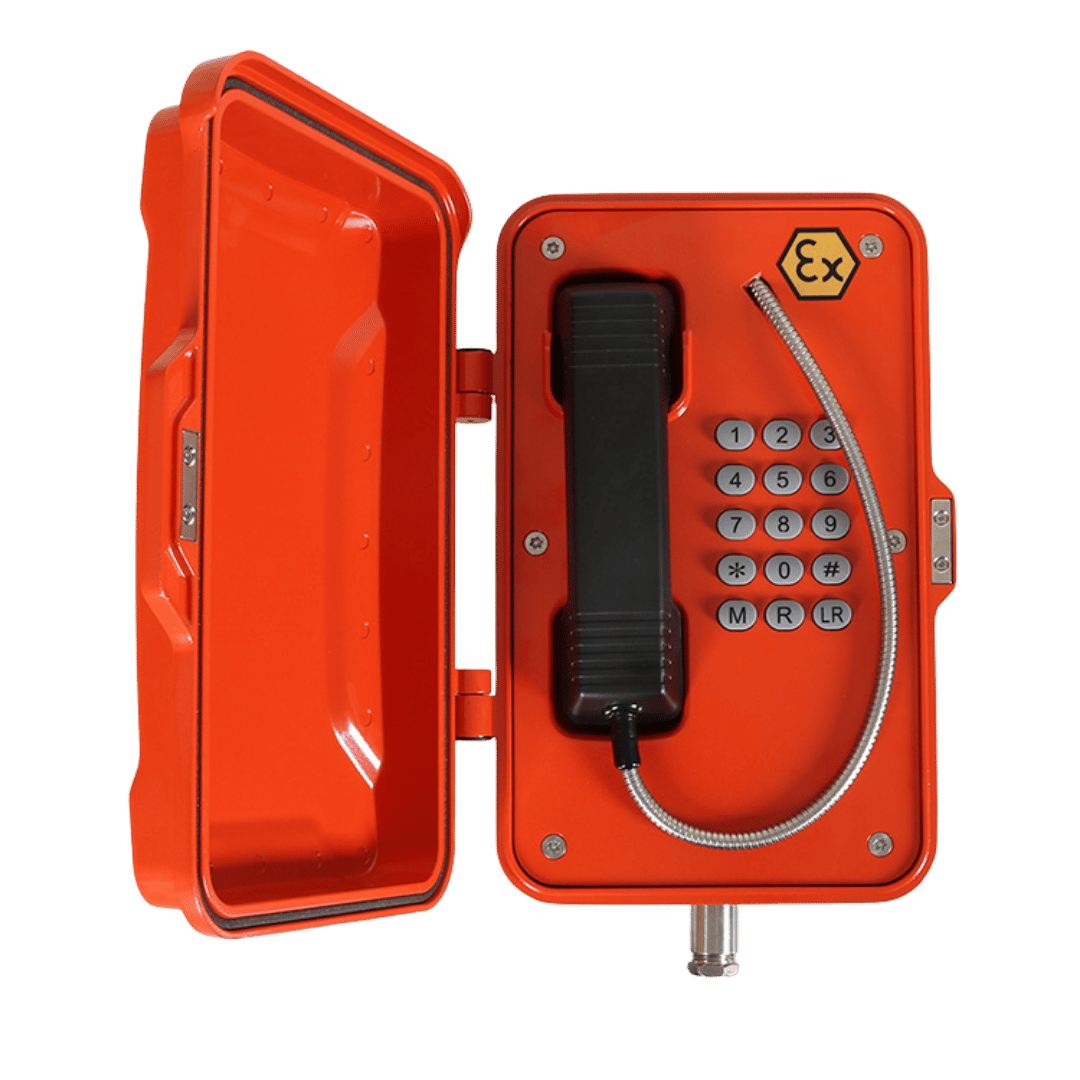

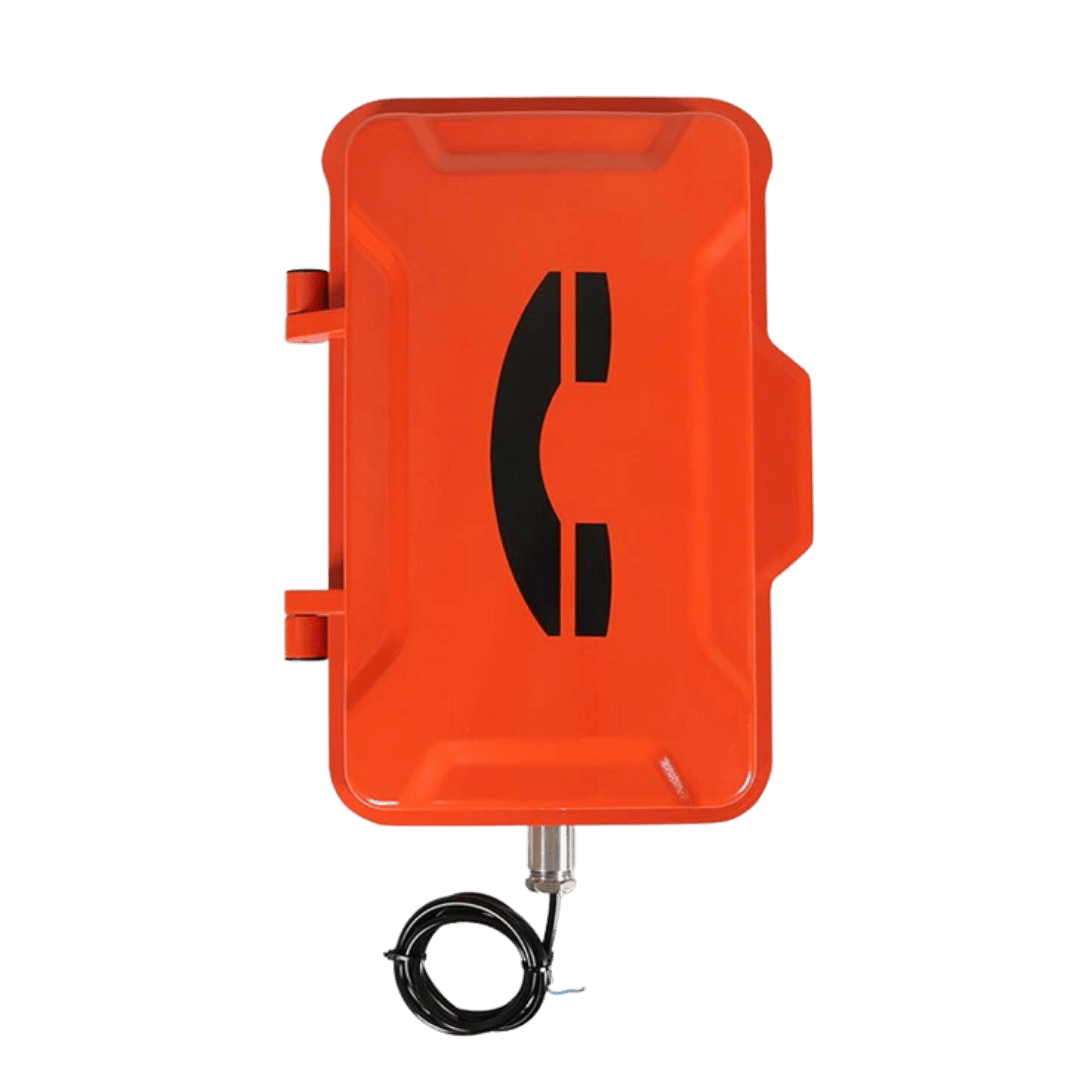

Explosion-proof VoIP Phone
This VoIP Explosion-proof Industrial Telephone is fully contained within a corrosion resistant cast aluminium weatherproof case which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
This VoIP Explosion-proof Industrial Telephone is designed for voice communication in the hostile environment where reliability, efficiency and safety are of prime importance. The telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.
-
Multi-scheme cluster coverage: IP co-channel simulcast cluster, digital DMR/PDT small cluster, digital DMR/PDT large cluster and other cluster solutions can be used according to user needs to ensure basic voice data management, and specially set up emergency communications System, dedicated to private network.
Managers can instantly broadcast emergency broadcasts through broadcast terminals to ensure the safety of on-site personnel;
-
Individual calls, group calls, and all calls: Using digital repeaters or trunking systems, individual calls, group calls, and all calls for all terminals in the network can be implemented, and emergency calls are supported to ensure smooth communication;
Communication equipment compatibility: It adopts digital trunking technology, is compatible with the original analog network, and provides telephone interconnection functions for interconnection with original wired communication equipment such as amplified intercoms and internal telephones.
Pre & Post Sales Support
We offer after sales support on a wide range of our products including:
- Design
- Selection
- Engineered Fabrication
- Installation
- Configuration
- Maintenance
- Repair
- Calibration
Need help with installation?
We got you covered with approved EEHA certified electrical installers.
Speak to our Technical Sales Team Today.
Explosion proof equipment is critical in areas where the presence of flammable gases and vapours or ignitable dust and fibres could possibly create a hazardous atmosphere. Designed to prevent and control the risk of ignition.
