1 1

Ex Emergency Stop Station Mushroom Head - IECEx Hazardous Area Zone 1,2

Ex Emergency Stop Station Mushroom Head - IECEx Hazardous Area Zone 1,2

$387.20 AUD
$387.20 AUD
Sale Pre order now
GST and Shipping is calculated at checkout.

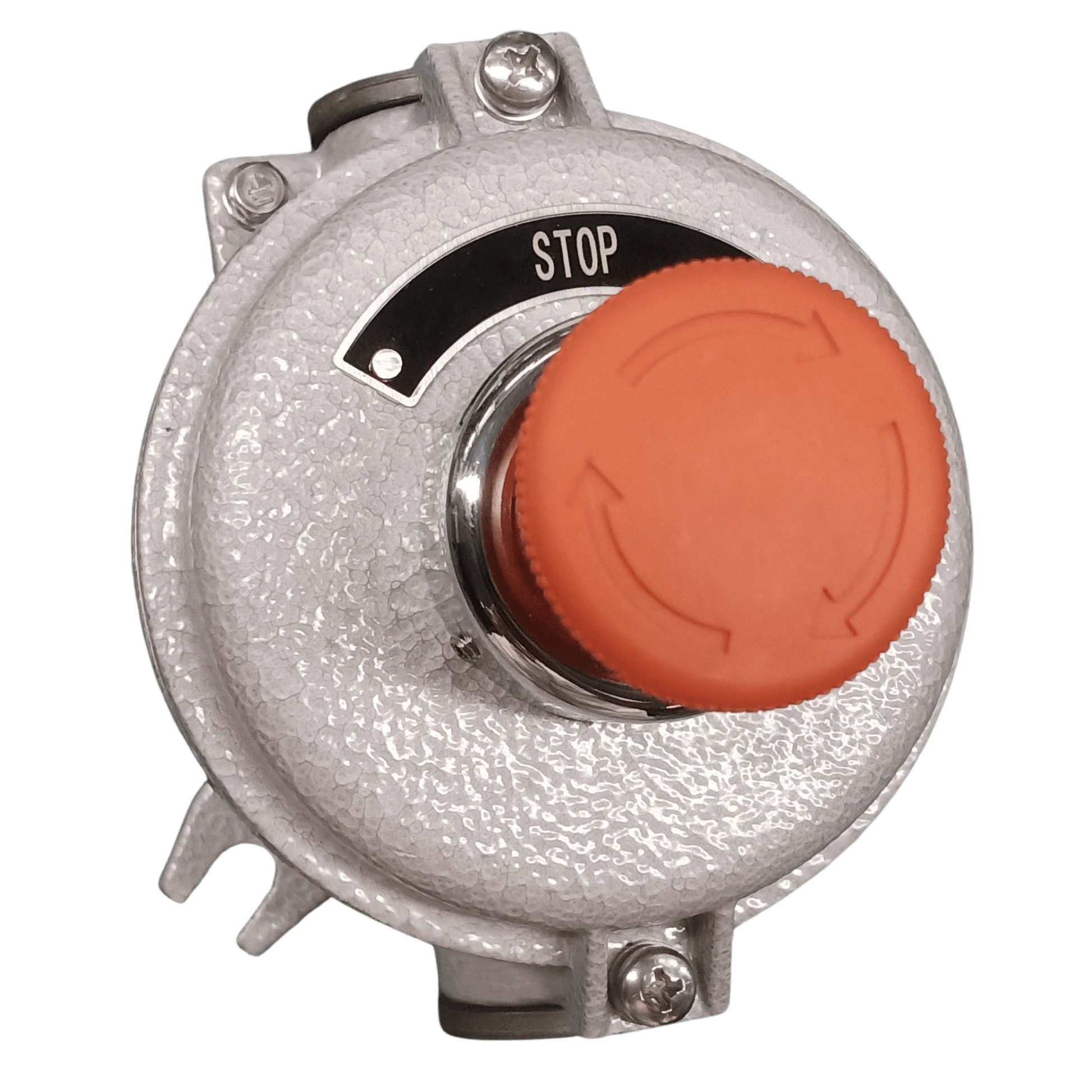

BZA85 Series Ex Emergency Stop Station is designed for safety and reliability in hazardous environments. Built from corrosion-resistant aluminium alloy and certified to IECEx and ATEX standards, it delivers reliable emergency shutdown in Zone 1, Zone 2, Zone 21, and Zone 22 areas. Providing critical emergency shutdown capability in both indoor and outdoor applications.

  • Ex db IIC T6 Gb (Gas), Ex tb IIIC T80°C Db IP66 (Dust)

  • Mushroom stay-put emergency pushbutton

  • Mushroom turn-to-release emergency pushbutton

  • Rated voltage: up to 500V AC / 250V DC (600V for voltmeter models)

  • Rated current: 10A (AC) / 6A (DC)

View full details

Technical Datasheet

Click here to see datasheet

Shipping

We aim to process and get your delivery with you as quick as possible -

Shipping rates and delivery times are calculated at checkout.

Please see our shipping policy for more details

Guarantee

We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.

Warranty

• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.

Please see our returns policy for more information.

  • Hazardous Area Certified

    Certification

    • IECEx

    Equipment Protection Level

    IECEx

    • Ex db IIC T6 Gb
    • Ex tb IIIC T80°C Db IP66






  • FEATURES

    Durable Construction: Copper-free aluminium alloy with powder-coated surface for excellent corrosion, dust, and water resistance (IP66).


    Emergency Stop Options:
    Mushroom stay-put emergency pushbutton
    Mushroom turn-to-release emergency pushbutton

    Electrical Ratings:

    Rated voltage: up to 500V AC / 250V DC (600V for voltmeter models)
    Rated current: 10A (AC) / 6A (DC)

  • FEATURES

    Environmental Performance: Designed to operate in temperatures from -60°C to +60°C.


    Flexible Installation: Standard 2 × M25 x 1.5 cable entries (optional NPT3/4"), compatible with Ex e cable glands.

Applications

  • Oil & Gas Processing Plants

    In hazardous gas environments such as refineries, LNG facilities, or offshore platforms, the emergency stop station provides operators with a quick shutdown control for pumps, compressors, or conveyors. In the event of a gas leak or fire risk, pressing the Ex-rated mushroom button immediately cuts power to critical equipment, preventing escalation and ensuring worker safety.

  • Chemical & Pharmaceutical Manufacturing

    Chemical mixing and pharmaceutical production often involve flammable vapors and dusts. The Ex emergency stop station allows workers to halt machinery and batch processes instantly during unsafe conditions, such as a spill, overheating, or dust ignition risk. Its IP66 enclosure ensures reliable operation even in areas with chemical exposure, high humidity, or washdowns.

  • Mining

    In underground mines or grain silos where combustible dust is present, the emergency stop station serves as a critical safety device for conveyors, crushers, or ventilation systems. Positioned along work areas, operators can activate the stop function to prevent accidents, equipment jams, or dust explosions, even under extreme temperature and environmental conditions.

Why Ex-certified Emergency Stops Are Critical

In Zone 1, Zone 2 (Gas) and Zone 21, Zone 22 (Dust) areas, standard electrical equipment can pose a serious ignition risk. Ex-certified emergency stop stations are specially designed and tested to:

  • Contain or prevent explosions caused by electrical sparks.
  • Withstand harsh environments such as offshore platforms, refineries, chemical plants, and mining sites.
  • Maintain safety in extreme conditions, with protection ratings such as IP66 against dust and water ingress.
