Ex Emergency Stop Push Button - Panel Rail Lid Mounted - IECEx ATEX Zone 1,2
Ex Emergency Stop Push Button - Panel Rail Lid Mounted - IECEx ATEX Zone 1,2
Couldn't load pickup availability
16 in Stock Ready to Ship

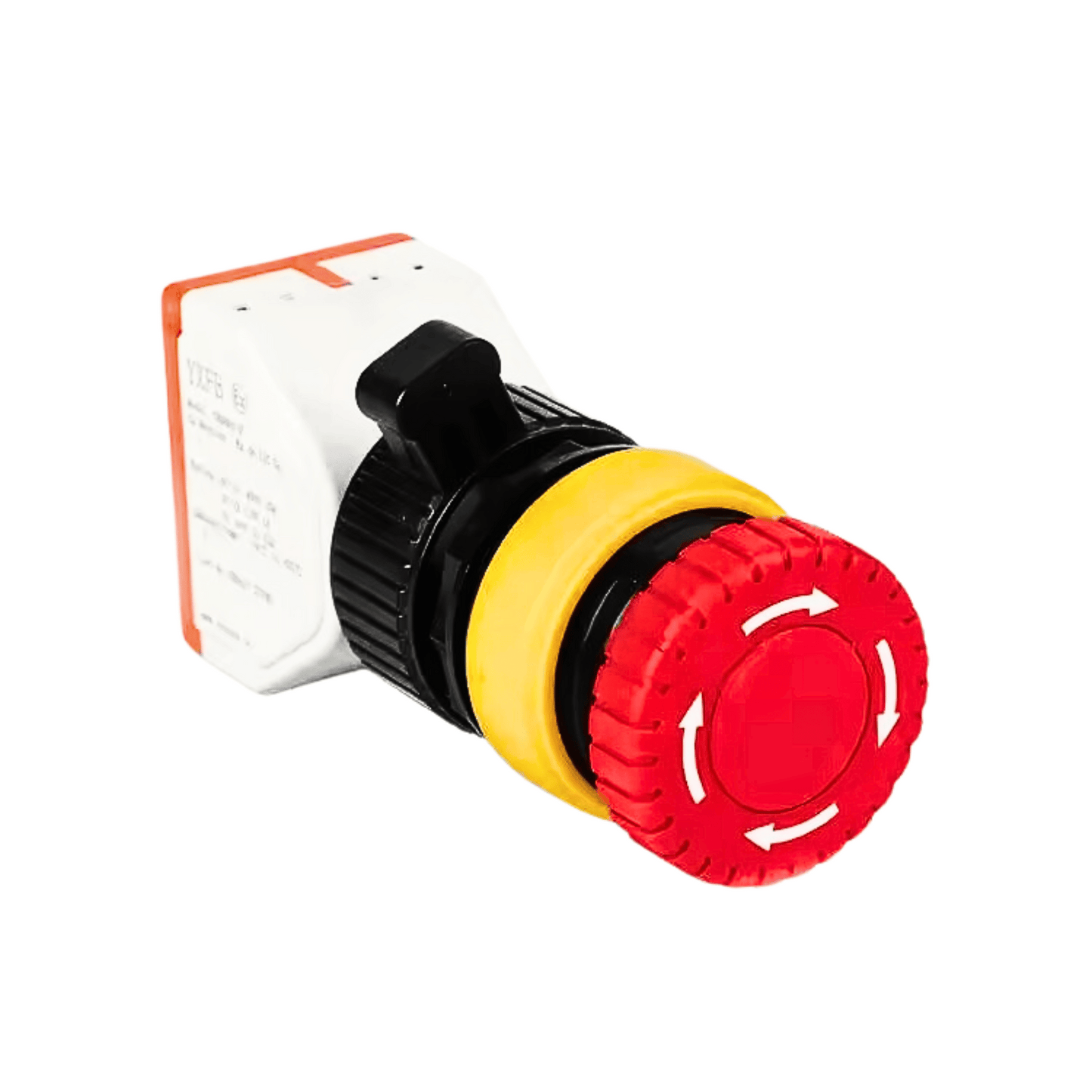

The CH0801-P3 Hazardous Area Emergency Push Stop Button, Rotating Release. Sets the stand in Ex rated explosion-proof emergency stop buttons. Engineered to endure and perform in the relentless challenges of the industrial environments with moisture, dirt, dust, corrosion, and vibration.
Harnessing equipment protection levels of .These rail or panel lid mounted ex rated push buttons are perfectly suited for the most challenging harsh atmospheric conditions found in industries such as oil and gas, chemical refinery, petrochemical, offshore, petroleum, spray booths, and breweries. Mainly used for control station and instrument housing, motor starter unit, instrument housing, lighting control panels.
Covered by the IECEx and ATEX certification, brings a compliant solution to hazardous areas.
SKU Model: CH0801-P3
Please contact us with the SKU model selection tool via the datasheet, located under technical datasheet tab below.
Collapsible content
Technical Datasheet
Shipping
Manufacturing lead time is dependant on quantity ordered. This is excluding the delivery lead time which is estimated at checkout.
We aim to process and get your delivery with you as quick as possible.
Please contact us to retrieve the estimate lead times for your order.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
Ordering
Please ensure you submit the model order code(s) and quantities in the comments section upon checkout.
We will not be able to ship your order until model order codes and quantities if multiple are not submitted.
Prices will fluctuate on the request model code order with configuration add ons. Please request a quotation.
-
Hazardous Area Certified
Certificate Number
- IECEx CML 22.0059U
- ATEX
Zone Location
- IECEx
Ex db ⅡC Gb
Ex tb ⅢC Db- ATEX
Ex Ⅱ 2 G Ex db ⅡC Gb
Ex Ⅱ 2 D Ex tb ⅢC Db -
Electrical Safety Certified
Functional safety certification
- IEC60079-0,IEC60079-1, IEC60079-7, IEC60079-31
- EN60079-0,EN60079-1, EN60079-7,EN60079-31
-
Variations
- 0: 10 - 28 VDC
- 1: 10 - 250 VDC/VAC
- 2: 280 -415 VAC
Mounting Type
- Rail Mounted
- Lid Mounted
- Lid Mounting of board back cable.
- Lid Mounting with cable
