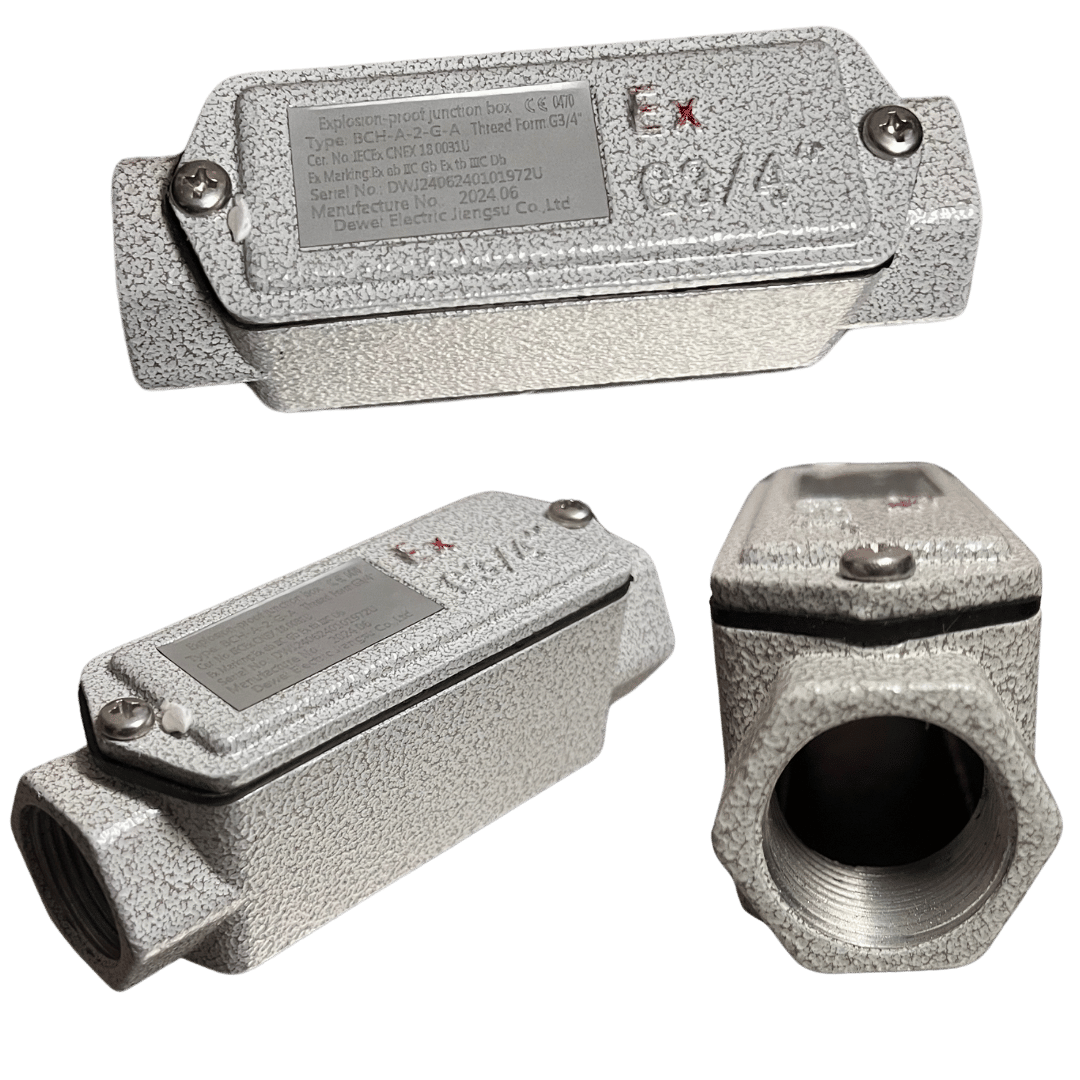

Ex Cable Bushing Pull Box - IECEx ATEX Hazardous Area Zone 1,2

Click here to see datasheet

We aim to process and get your delivery with you as quick as possible -

Shipping rates and delivery times are calculated at checkout.

Please see our shipping policy for more details

Frequently Asked Questions — ATEX / IECEx Rated Through-Wiring Pull Box

Q1: What is an ATEX / IECEx through-wiring pull box?

A:

An ATEX / IECEx through-wiring pull box is a certified explosion-protected enclosure designed for routing and protecting electrical cables in hazardous locations. It allows cables to pass safely through classified areas without creating ignition risks from sparks, flames, or excessive heat.

These enclosures are commonly used in oil & gas, chemical plants, offshore platforms, mining, marine environments, and industrial processing facilities.

Q2: What is the difference between a through-wiring pull box and an explosion-proof junction box?

A:

A through-wiring pull box is mainly used for cable routing, pulling, and protection where no electrical splicing or terminal connections are required inside the enclosure.

An explosion-proof junction box, however, is specifically designed to contain electrical terminations, cable splices, or wiring connections safely within hazardous areas.

In simple terms:

•
  Through-wiring pull box = cable management and routing

•
  Junction box = electrical connection and distribution


Q3: What do ATEX and IECEx certifications mean?

A:

ATEX and IECEx are internationally recognized hazardous area certifications.

•
  ATEX is the European directive for equipment used in explosive atmospheres.

•
  IECEx is the global certification system based on IEC international standards.


These certifications confirm the enclosure has been tested and approved for safe operation in potentially explosive gas or dust environments.

Q4: Why are explosion-proof pull boxes important in hazardous areas?

A:

Explosion-proof pull boxes help prevent ignition sources from escaping the enclosure and igniting surrounding flammable gases, vapors, or combustible dust.

They also provide:

•
  Secure cable routing

•
  Mechanical cable protection

•
  Flamepath containment

•
  Environmental sealing against moisture and corrosion

•
  Long-term system reliability in harsh industrial conditions


Q5: What materials are commonly used for ATEX / IECEx through-wiring pull boxes?

A:

Most hazardous area pull boxes are manufactured from:

•
  Marine-grade aluminum alloy

•
  Stainless steel

•
  Copper-free aluminum


Aluminum alloy versions are popular because they are lightweight, corrosion-resistant, and durable for industrial environments.

Q6: How does an explosion-proof cable gland work with a through-wiring box?

A:

The explosion-proof cable gland acts as the sealing interface between the cable and the enclosure.

For safe installation:

•
  Each cable must use a properly certified gland

•
  The gland must match the enclosure’s ATEX / IECEx rating

•
  Correct thread type and cable diameter must be selected

•
  The gland must maintain the enclosure’s ingress protection and flameproof integrity


Together, the gland and pull box form a complete hazardous-area cable entry system.

Q7: Can multiple cables enter one explosion-proof pull box?

A:

Yes, multiple cables can be installed in a single pull box if installation guidelines are followed.

Key requirements include:

1.
   Avoid overcrowding the enclosure to maintain proper heat dissipation

2.
   Use one certified cable gland per cable

3.
   Ensure adequate spacing for cable bending and maintenance

4.
   Maintain the enclosure’s certified temperature rating

5.
   Follow manufacturer cable fill capacity recommendations


Q8: What hazardous area zones are these pull boxes suitable for?

A:

ATEX / IECEx through-wiring pull boxes are commonly approved for use in:

•
  Zone 1 and Zone 2 gas environments

•
  Zone 21 and Zone 22 dust environments


The exact zone suitability depends on the product certification and protection method.

Q9: Are explosion-proof pull boxes waterproof?

A:

Most certified pull boxes are designed with high ingress protection ratings such as IP66 or IP67.

This provides protection against:

•
  Water jets

•
  Heavy rain

•
  Dust ingress

•
  Industrial washdown environments


Always verify the specific IP rating for your application requirements.

Q10: What is the difference between flameproof and explosion-proof?

A:

The terms are often used interchangeably, but technically:

•
  Flameproof (Ex d) is the IEC/ATEX terminology

•
  Explosion-proof is commonly used in North America


Both describe equipment designed to contain an internal explosion and prevent flame transmission to the external hazardous atmosphere.

Q11: Can these pull boxes be used outdoors?

A:

Yes. Most ATEX / IECEx certified pull boxes are engineered for outdoor industrial environments and can withstand:

•
  UV exposure

•
  Salt spray

•
  Corrosion

•
  Extreme temperatures

•
  High humidity


Proper material selection is important for marine or highly corrosive locations.

Q12: What thread types are available for cable entries?

A:

Common thread options include:

•
  Metric

•
  NPT

•
  BSPP

•
  BSPT


The correct thread type must match the cable gland and installation requirements to maintain certification compliance.

Q13: Do hazardous area pull boxes require maintenance?

A:

Yes. Regular inspection is recommended to ensure:

•
  Cable glands remain tight

•
  Flamepaths are undamaged

•
  Seals and gaskets remain intact

•
  No corrosion or physical damage exists

•
  Certification markings remain visible


Maintenance intervals should follow site safety procedures and hazardous area regulations.

Q14: What industries commonly use IECEx / ATEX through-wiring pull boxes?

A:

These enclosures are widely used in:

•
  Oil & gas

•
  Petrochemical plants

•
  Refineries

•
  Mining operations

•
  Offshore drilling platforms

•
  Marine applications

•
  Pharmaceutical manufacturing

•
  Grain and food processing facilities

•
  Chemical plants


Q15: How do I choose the correct explosion-proof pull box?

A:

Important selection factors include:

•
  Hazardous area classification

•
  Gas or dust group

•
  Temperature class

•
  Number and size of cables

•
  Cable gland compatibility

•
  Corrosion resistance requirements

•
  Mounting configuration

•
  Environmental protection rating


Always ensure all components are certified as part of a complete hazardous-area installation system.
