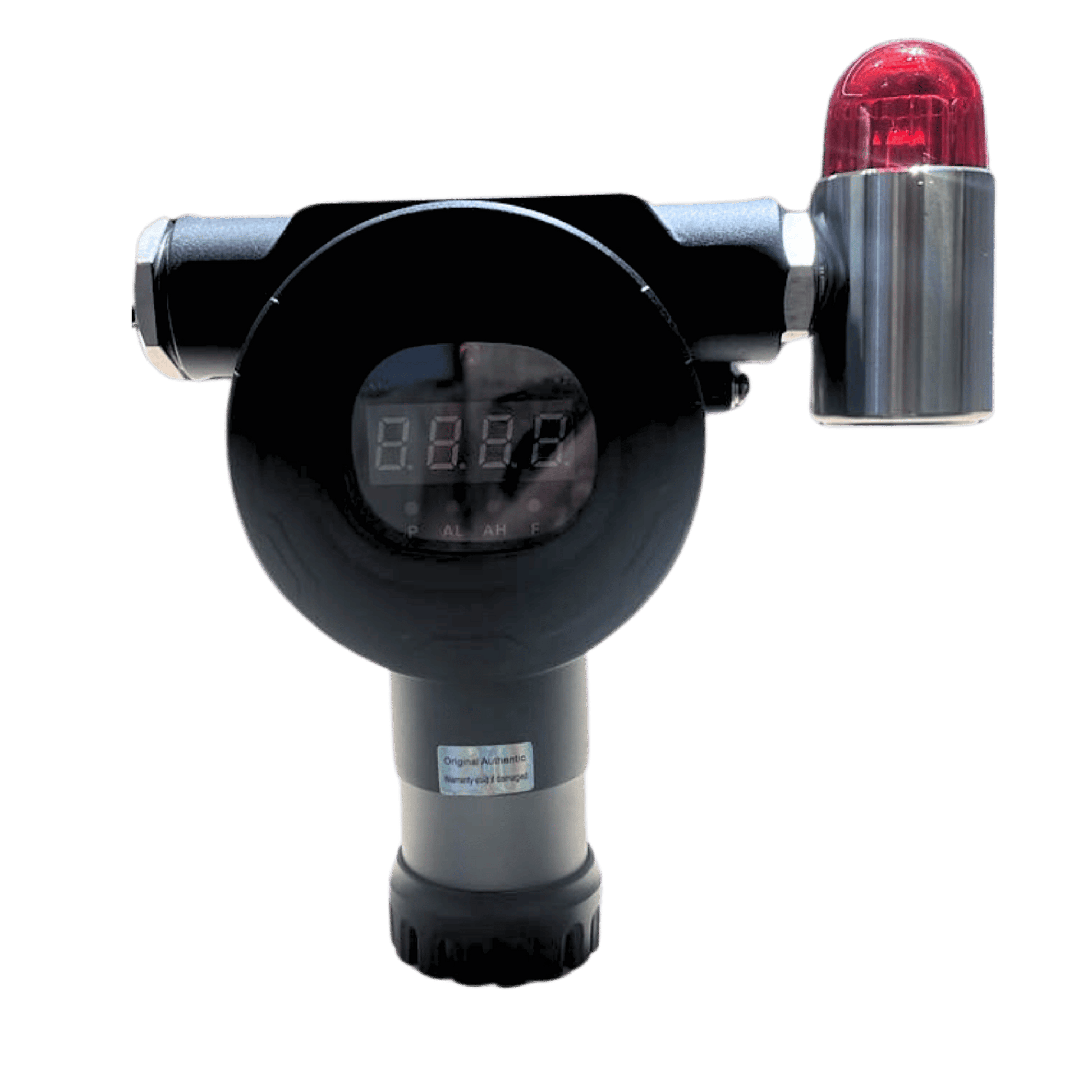

CH4 Methane Fixed Gas Detector Monitor - IECEx ATEX Hazardous Area Zone 1,2
CH4 Methane Fixed Gas Detector Monitor - IECEx ATEX Hazardous Area Zone 1,2
Couldn't load pickup availability
The CH4 Methane Online Gas Detector, sets the stand in Ex rated explosion-proof gas detection. Engineered to endure and perform in the harsh challenges of the industrial environments with moisture, dirt, dust, corrosion, and vibration.
Harnessing equipment protection levels of Intrinsic Safety "ia", Flameproof "db". Suited for the most challenging hazardous atmospheric conditions found in industries such as oil and gas, marine, petrochemical, chemical, petroleum, manufacturing etc. Covered by the IECEx and ATEX certification, brings a compliant solution to hazardous areas.
Adopting pluggable fixed gas detector, gives easy maintenance after installation and continuous monitoring of combustible, flammable and toxic gases, model dependant. Configured via 3-wire 4-20 mA analogue output with relays, and optional HART, RS485 Modbus protocol, making it compatible with most control systems. Additional magnetic wand design, it’s easier to navigate the control menu.
Ideal for Energy & Power Generation, Industrial Fuel, Transportation (CNG & LNG), Renewable Energy. Metal Processing applications, designed to provide continuous, real-time monitoring of ethanol vapours in the air. Methane is highly flammable, and early detection of leaks is critical to preventing fire hazards and ensuring a safe working environment.
Collapsible content
Technical Datasheet
Shipping
We aim to process and get your delivery with you as quick as possible -
Shipping rates and delivery times are calculated at checkout.
Guarantee
We aim to provide you with the best quality products, if for an unfortunate product defect we have a 14 day money back return guarantee.
Warranty
• 1 year warranty from the date of purchase.
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labour, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
Please see our returns policy for more information.
Calibration
To ensure you keep up to date with your metrology requirements, by adding the traceable standards calibration test report certificate.
-
Hazardous Area Certified
Certification
- IECEx CQM 23.0027X
Equipment Protection Level
IECEx
- Ex db IIC T6 Gb
- Ex db ia IIC T6 Gb (without LEL sensor)
- Ex da db ia IIC T6 Gb (with separaed certified LEL sensor)
-
FEATURES
Modular gas chamber for maintenance simply and conveniently
- Plug and play air chamber module replacement.
- Two-key magnetic bar design, no need to open the cover, to achieve on-site maintenance and operation of the detector in any explosion-proof area.
- 24h continuously monitoring, data will real-time display.
-
FEATURES
- Standard 4-20mA current signal, RS485 digital signal, 1 set of relay signal output
- Optional 2 groups of relay signals, voltage 1 ~ 5V, standard Hart
- Optional LORA, 4G and other wireless transmission.
- Can be installed with computer software, to transmit the data to computer, workers can remote monitor the data
- Die-cast aluminium case, IP66/67 protection degree, water-proof, dust-proof, explosion-proof.
Applications
-
Energy & Power Generation
Methane gas is used as the primary component of natural gas for electricity and heat production.
-
Industrial Fuel
Methane is used to power furnaces, kilns, and boilers in manufacturing and processing industries.
-
Chemical Industry
Methane gas is a key feedstock for producing hydrogen, methanol, and ammonia (used in fertilizers).
Methane (CH₄) is a colorless, odorless, and highly flammable gas commonly found in natural gas, landfills, and industrial processes. While it is not toxic, it can displace oxygen and pose asphyxiation risks in enclosed spaces.
- OSHA (Occupational Safety and Health Administration) PEL (Permissible Exposure Limit): No specific OSHA PEL for methane, but oxygen displacement must be controlled (maintain oxygen above 19.5%).
- NIOSH (National Institute for Occupational Safety and Health) REL (Recommended Exposure Limit): 1000 ppm (TWA, as an indicator of potential oxygen displacement).
- ACGIH (American Conference of Governmental Industrial Hygienists) TLV (Threshold Limit Value): No direct TLV, but methane exposure should not cause oxygen levels to drop below 19.5% in confined spaces.
- Short-Term Exposure Effects: Dizziness, nausea, and unconsciousness due to oxygen displacement. At extremely high concentrations, asphyxiation can occur without warning.
Add Calibration Service
Ensure to keep up to date with your metrology requirements, by adding the calibration test report certificate.
-
Pre & Post After Sales Support
After Sales Support
We offer after sales support on all our products including
- Installation
- Configuration
- Maintenance
- Repair
- Calibration
-
Calibration & Repair
Calibration ServicesOur accredited laboratory is tailored to conduct traceable standard calibrations and repairs on all our equipment.
Contact form
Methane is highly flammable and can create explosive mixtures with air, making proper monitoring essential.
- Flash Point: −188°C (−306°F) – Extremely low, meaning methane can ignite easily at very low temperatures.
- Autoignition Temperature: 537°C (999°F) – The temperature at which methane ignites without an external flame.
- Flammable Limits (Lower & Upper Explosive Limits in Air):
- Vapor Density: ~0.55 (Air = 1) – Lighter than air, methane rises and disperses quickly in open areas.
