Advantages

  • Light Weight

    The weight of wire mesh cable trays are 1/5 of traditional cable trays, making
    them easier to install.

  • Clean & Easy Maintenance

    The open design allows continuous airflow, which prevents overheating and
    the build-up of dust and contaminants. Cable visibility allows for more convenient upgrading and maintenance.

  • Customisable

    All kinds of elbows can be made at the project site flexibly. Multiple finishes are available for indoor and outdoor applications.

  • Corrosion Resistance

    Our explosion proof cable glands are designed to combat the effects of explosive gases and dusts, with acid, alkali, strong corrosive gas, or water vapour.w.

  • Impact Resistant

    Our explosion proof cable glands are designed and tested to combat the effects of drop and impact bump to the gland.

  • Pull-out Resistant

    Our explosion proof cable glands are designed and tested to combat the effects of strain to the cable that may pull on the cable from the gland.

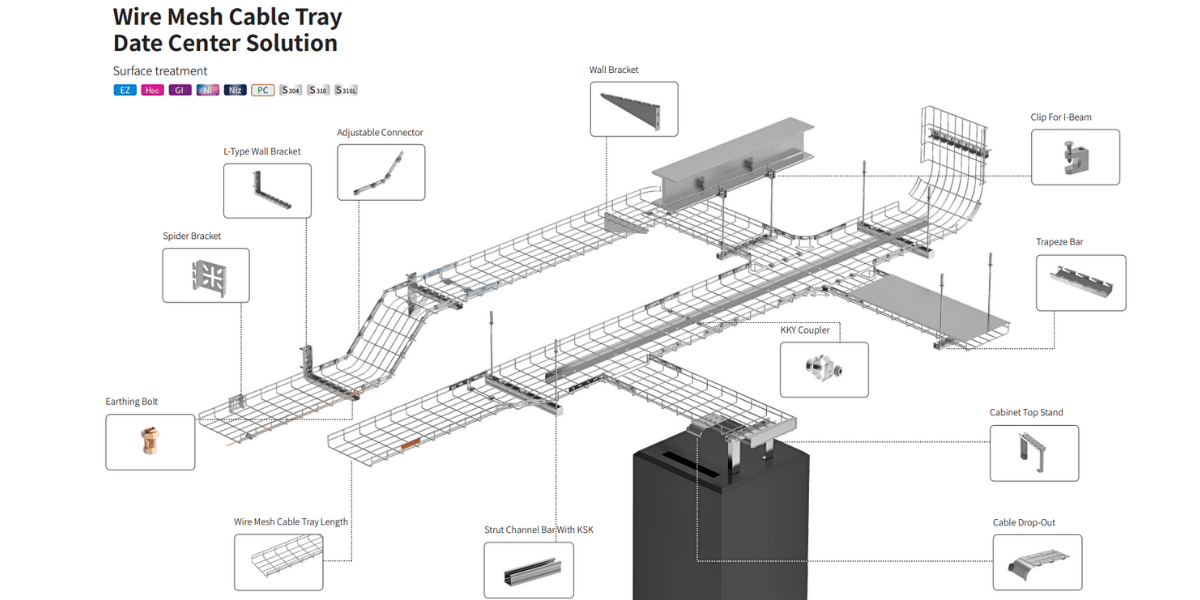

Wire Mesh Cable Tray Installation Product Guide

Manufacturing Process

  • Cutting-cut the metal bar

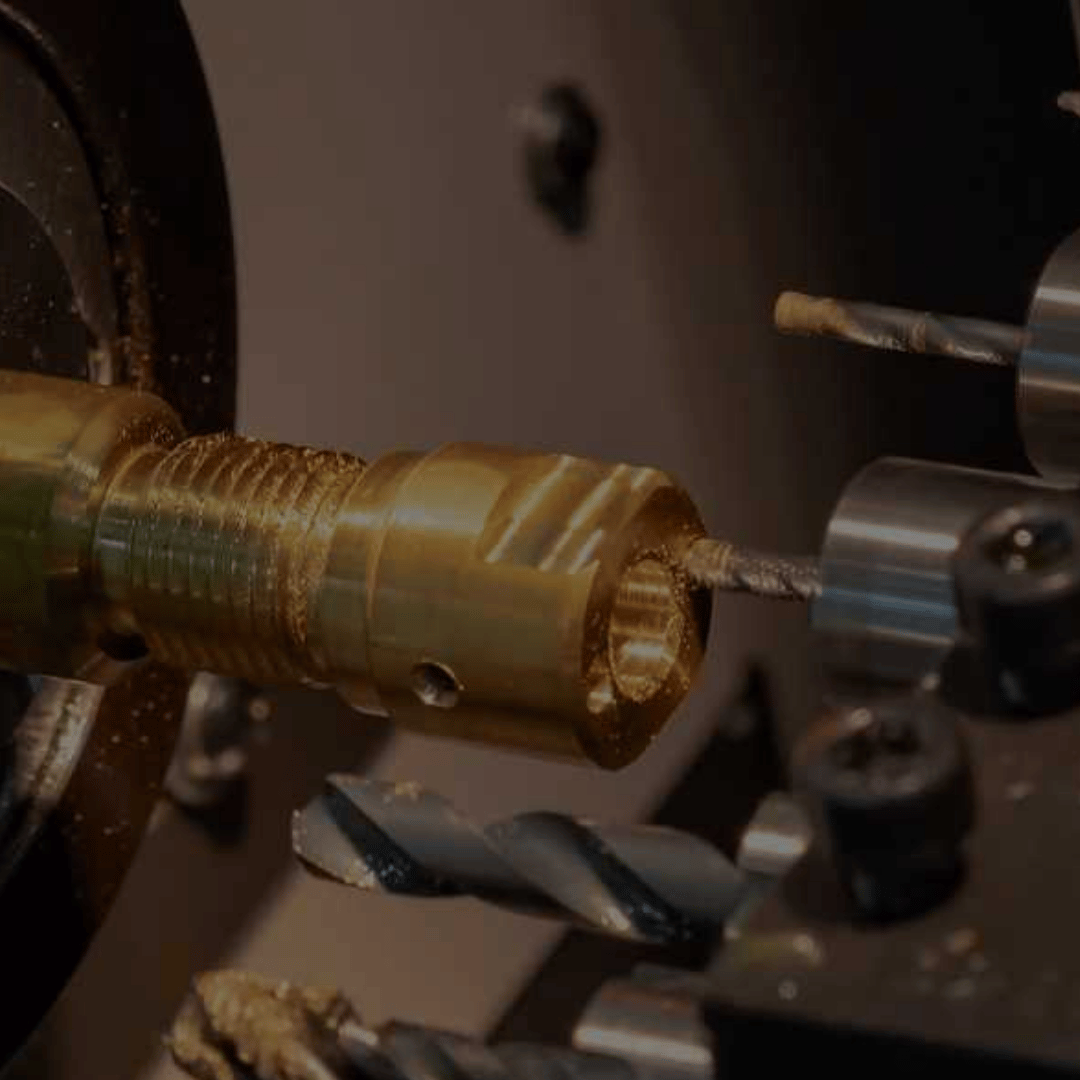

  • CNC machining
  • Thread machining
  • Deburring
  • Electroplating
  • Assembly
  • Engraving
  • Conformity check

Helpful Information

  • Cable sealing options for different flameproof equipment

    For Ex cable glands there are two types of sealing

    1. Ring Seal
    2. Packing + Sealing Ring Seal

    Although the single sealing ring can play a role in explosion proofing. The sealing ring has a fixed shape and can be sealed by extrusion, not 100% air tight. For packing seal, the cable can be completely wrapped by the putty compound. Which can better achieve a sealing flameproof effect.

  • For explosion proof cable glands, the protection method must meet or exceed the protection level of the equipment that is connected to the cable gland.

    Exd enclosures or equipment must be equipped with Exd cable glands. Exe or Ext only cable glands cannot be used with Exd equipment. However Exd cable glands can be used on Exe device or housings.

  • When to use a barrier gland - Exd

    A Barrier gland MUST be used in an Ex d environment
    unless the cables:-
    Are circular and compact
    Have an extruded bedding or sheath
    Use non-hygroscopic fillers.

  • When to use a barrier gland – Ex e / Ex nR

    Barrier glands should also be used:-
    • In Ex e applications when there is a risk of gas
    migrating down a cable.
    (IEC Ex 60079-14 clause 9.3.2)
    • In Ex nR applications where the cable is not sealed.
    (IEC Ex 60079-14 clause 10.8)
IECEx Information Guide on CABLE GLAND SELECTIONFOR HAZARDOUS AREA INSTALLATIONS

Wire Mesh & Cable Tray Manufacturing

CAPABILITIES

Wire Mesh & Cable Tray Manufacturer

Production factory covering 2000m2, working to accommodate the demand of the industrial industry needs. Holding more than 10,000 in stock finished cable glands.

  • Pre & Post After Sales Support

    We offer after sales support on all our products including

    • Site Measuring Services
    • CAD Design
    • Configuration
    • Custom Manufacturing Fabrication
    • Installation / Assistance
    • Maintenance
    • Repair

  • Engineering Design & Fabrication

    • Site Surveying
    • CAD drawing
    • P&ID
    • Component selection
    • Bill of materials
    • Factory Acceptance Testing (FAT)
    • Professional packaging and delivery

Our Core Values

  • UNPARALLELED SUCCESS

    We embrace every challenge as a team with our expertise, and have a proven track record of success when we collaborate.

  • WORK SMARTER NOT HARDER

    In order to do great work, we need knowledgeable, well-trained individuals, combined with automation. We are dedicated to not only providing our team with top-notch training, but also world-class equipment to ensure we’re stay at the cutting edge of the industry.

  • TAKE PRIDE

    Since the beginning, we have always believed in the quality and longevity of the products we sell and service we provide, and are proud to offer our expertise to all industries.

Materials we offer

  • Electrogalvanized

  • Hot Dip Galvanized

  • Dacromet

  • Pre-Galvanized

  • Powder Coated

  • Nickel Plated

  • Zinc-Nickel Plated

  • SS304

  • SS316

  • SS316L

  • Aluminium

  • PVC

  • ABS

  • Ungalvanized
